SKU: 6304-NTN

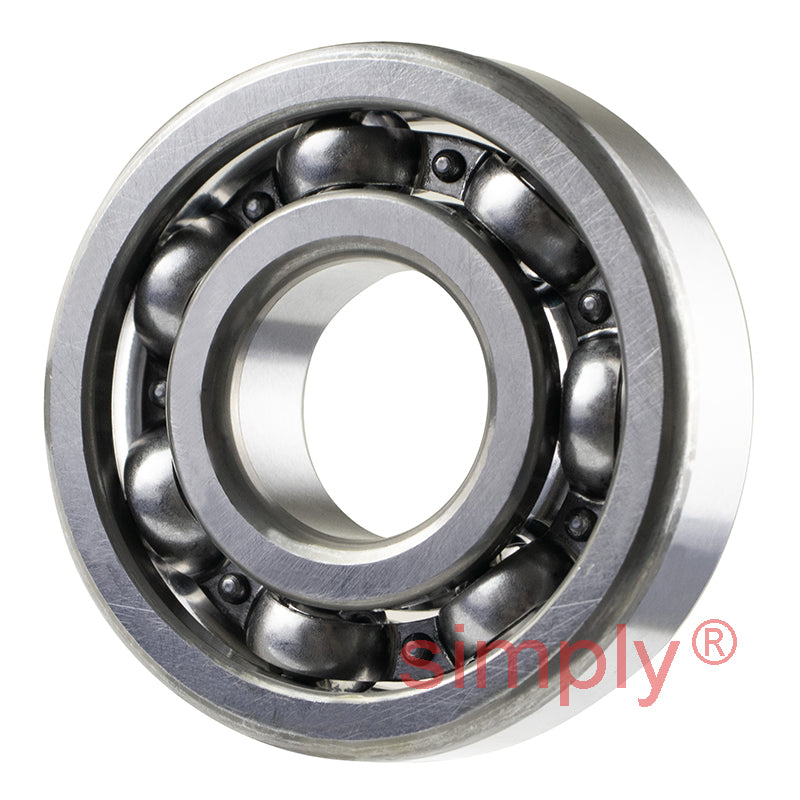

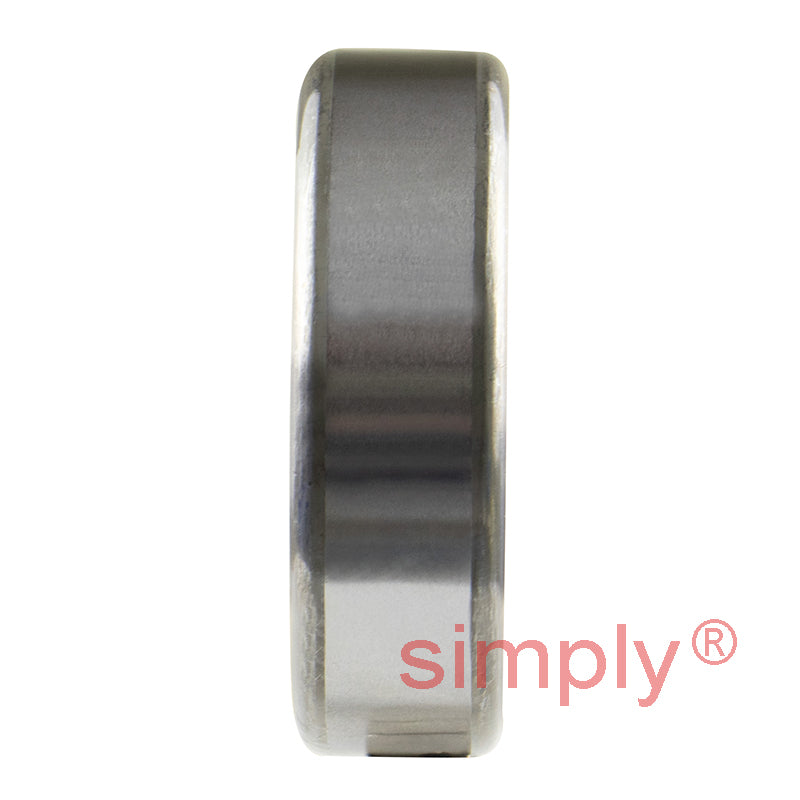

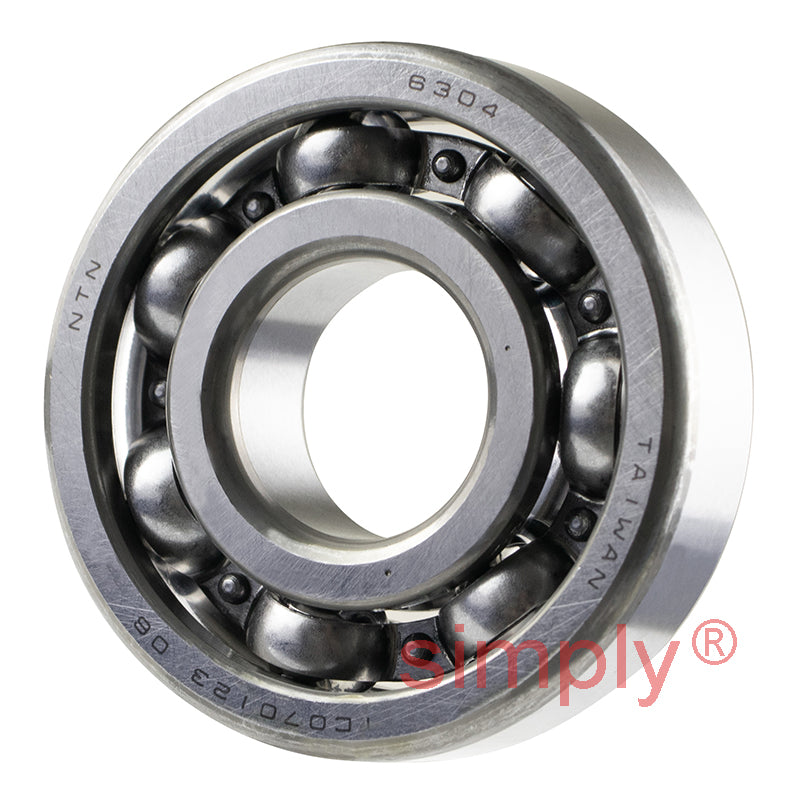

NTN 6304 Open Type Deep Groove Ball Bearing 20x52x15mm
NTN 6304 Open Type Deep Groove Ball Bearing 20x52x15mm
Regular price
$9.07
ex VAT
Regular price
Sale price
$9.07
ex VAT
Equivalent to: 6304CM 304K 1304 304KS 6304 3304 5B
In stock
Price Break
3+
$6.08
5+
$5.74
10+
$5.67
25+
$5.60
49+
$5.53
74+
$5.46
99+
$5.12
199+
$5.05
249+
$4.99
499+
$4.92
999+
$4.78
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 20mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.6 kN |
| C<sub>or</sub> | 7.9 kN |
| C<sub>u</sub> | 0.615 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 14000 rpm |
| Oil | 17000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 26.5mm |
| D<sub>a</sub> Max. | 45.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.144 kg |
