• NTN 6304LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 20x52x15mm
1 1

SKU: 6304LLB/5K-NTN

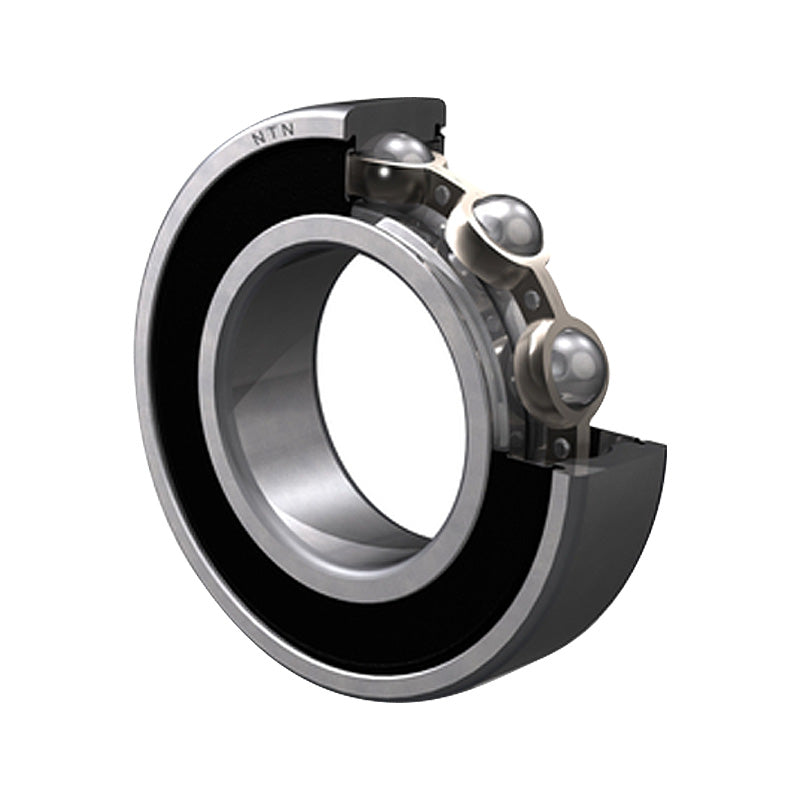

NTN 6304LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 20x52x15mm

NTN 6304LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 20x52x15mm
$10.86 ex VAT
$10.86 ex VAT
Sale Sold out

Equivalent to: 6304LLBCM 63042NKE 6304VV 63042RSL 63042RZ

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_NSDGB
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
52mm
Width:
15mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 20mm
D 52mm
B 15mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 17.6 kN
C<sub>or</sub> 7.9 kN
C<sub>u</sub> 0.615 kN
f<sub>0</sub> 12.4 kN
Grease 14000 rpm
Oil 17000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 26.5mm
d<sub>a</sub> Max. 28.5mm
D<sub>a</sub> Max. 45.5mm
r<sub>as</sub> Max. 1mm
Weight 0.144 kg
