SKU: 6304NR/C4-SKF

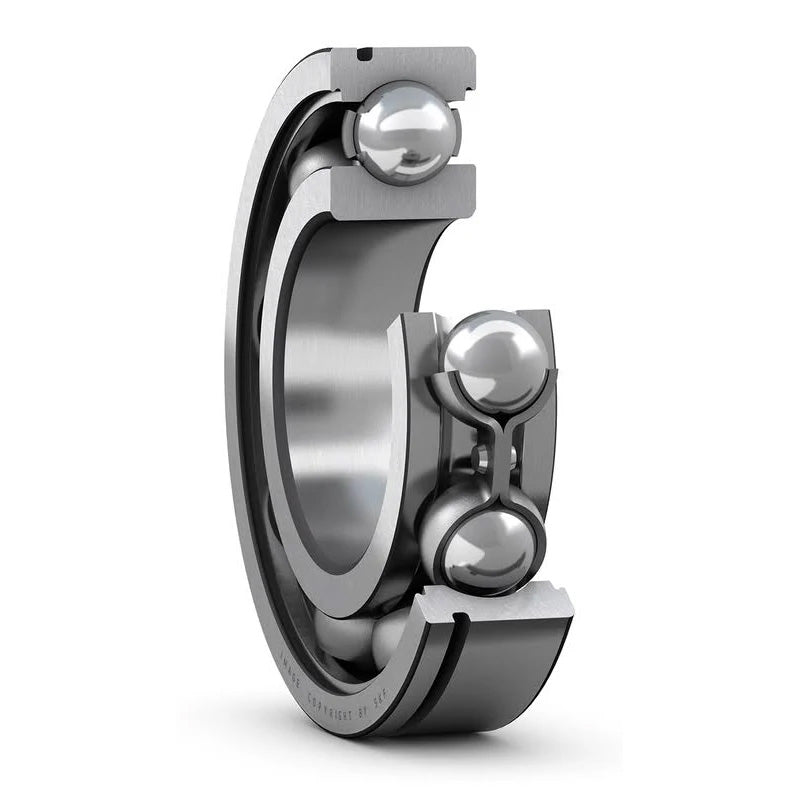

SKF 6304NRC4 Open Type Snap Ring Deep Groove Bearing 20x52x15mm - Allow 2-3 Days
SKF 6304NRC4 Open Type Snap Ring Deep Groove Bearing 20x52x15mm - Allow 2-3 Days
Regular price
$47.10
ex VAT
Regular price
Sale price
$47.10
ex VAT
In stock
Price Break
4+
$35.09
10+
$33.67
20+
$32.96
30+
$31.90
50+
$31.19
75+
$29.42
100+
$24.81
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C4
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 16.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 335 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 19000 rpm |
| Weight | 0.14kg |
| Snap ring | SP 52 |
| d1 | 30.3mm |
| D2 | 44.8mm |
| D3 | 49.73mm |
| D4 | 57.9mm |
| b | 1.35mm |
| f | 1.12mm |
| C | 2.46mm |
| r1r2 min | 1.1mm |
| ro max | 0.4mm |
| da min | 27mm |
| Da max | 45mm |
| Db min | 59mm |
| ba min | 1.5mm |
| Ca max | 3.58mm |
| ra max | 1mm |
| Calc Factor kr | 0.03 |
| fo | 12 |
