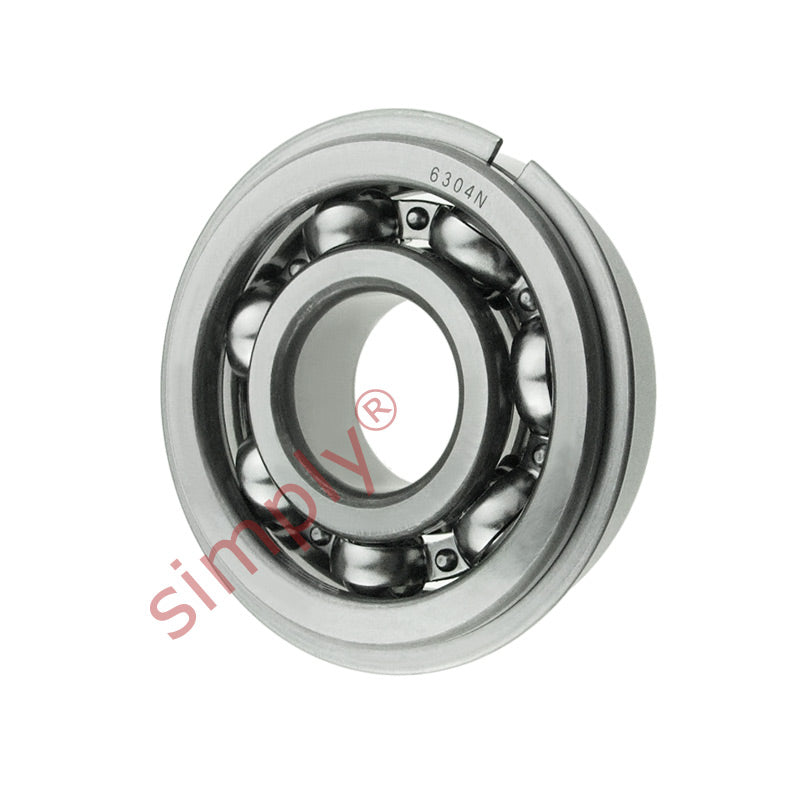

• 6304NR Deep Groove Ball Bearing with Snap Ring 20x52x15mm
1 1

SKU: 6304NR-MB

6304NR Deep Groove Ball Bearing with Snap Ring 20x52x15mm

6304NR Deep Groove Ball Bearing with Snap Ring 20x52x15mm
$22.24 ex VAT
$22.24 ex VAT
Sale Sold out

In stock

Price Break
10+ $14.90
19+ $14.06
29+ $13.90
39+ $13.73
49+ $13.56
74+ $13.39
99+ $12.56
199+ $12.39
249+ $12.22
499+ $12.06
999+ $11.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
20mm
Outside Diameter:
52mm
Width:
15mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 20mm
D 52mm
B 15mm
Dyamic load C 16.8 kN
Static load Co 7.8 kN
Fatigue load limit Pu 0.335 kN
Reference speed 30000 rpm
Limiting speed 19000 rpm
Mass 0.14 kg
d1 30.4mm
d2 41.6mm
D2 44.8mm
r1r2 min 1.1mm
da min 27
