SKU: 6304NRC3-NSK

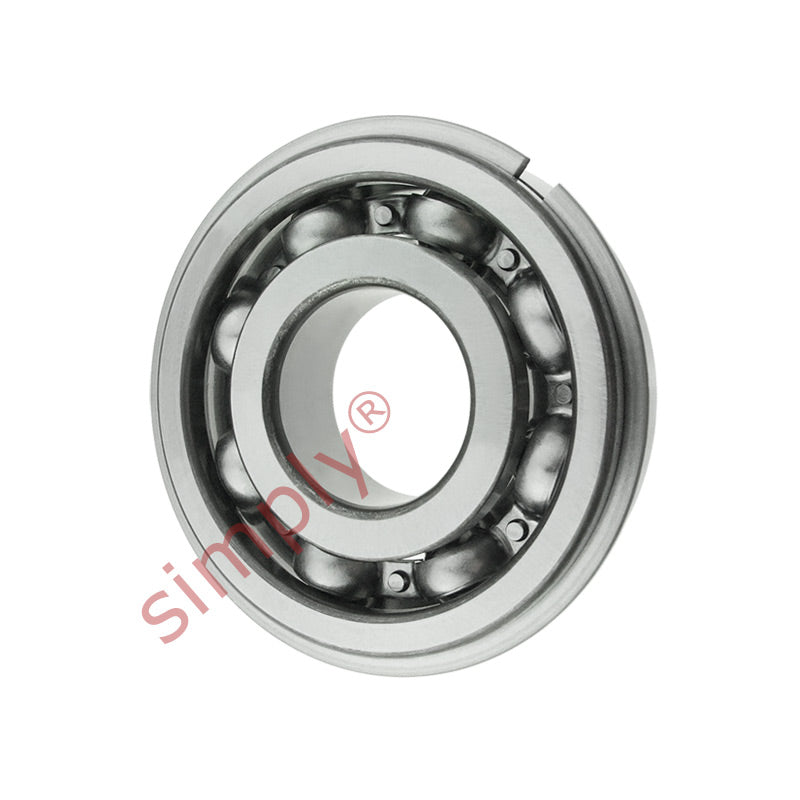

NSK 6304NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 20x52x15mm

Name: NSK 6304NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 20x52x15mm
Brand: NSK
SKU: 6304NRC3-NSK
Price: 23.73 USD
Availability: InStock

$23.73 ex VAT

Sale Sold out

In stock

Price Break

4+ $15.90

10+ $15.00

20+ $14.82

30+ $14.65

50+ $14.47

75+ $14.29

100+ $13.40

200+ $13.22

250+ $13.04

500+ $12.86

1000+ $12.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: None
Clearance:: C3
Snap Ring:: Snap Ring

Technical

d	20mm
D	52mm
B	15mm
r min	1.1mm
Dynamic load Cr	15900 N (1620 kgf)
Static load Cor	7900 N (805 kgf)
Factor	12.4
Speed in grease	14000 rpm
Speed in oil	17000 rpm
a max	2.46mm
b min	1.35mm
D1 max	49.73mm
ro max	0.4mm
rN min	0.5mm
D2 max	57.9mm
f max	1.12mm
da2 min	26.5mm
da2max	28mm
Da2max	45.5mm
ra max	1mm
Dx min	58.5mm
Cy max	3.3mm
Weight	0.145 kg
