SKU: 6305-2LS/C4/362249AB-SKF

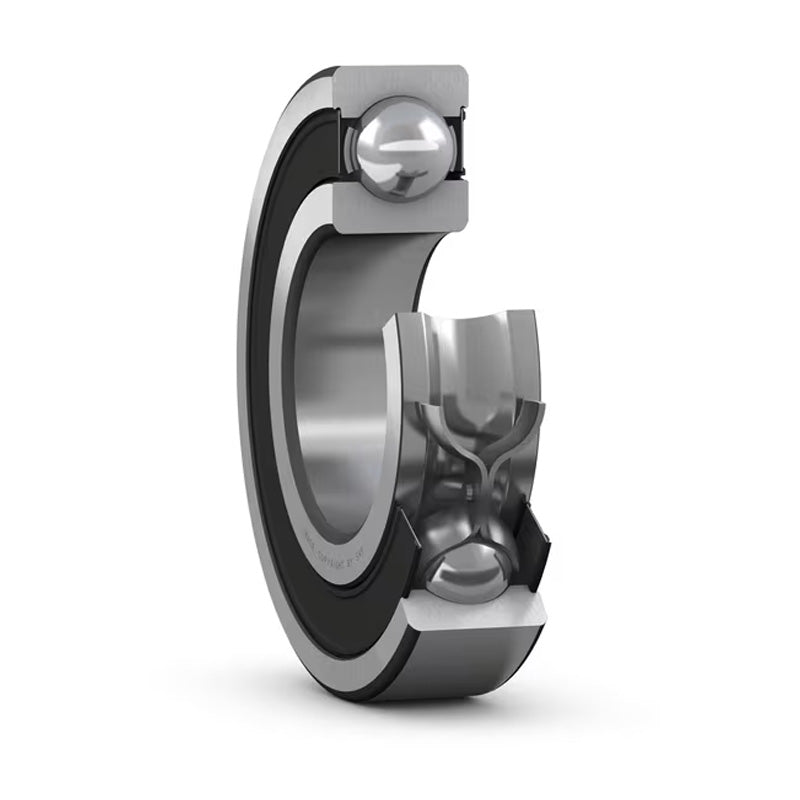

SKF 63052LSC4362249AB Rubber Sealed Deep Groove Ball Bearing 25x62x17mm
SKF 63052LSC4362249AB Rubber Sealed Deep Groove Ball Bearing 25x62x17mm
Regular price
$54.20
ex VAT
Regular price
Sale price
$54.20
ex VAT
In stock
Price Break
4+
$36.30
10+
$34.26
20+
$33.86
30+
$33.45
50+
$33.04
75+
$32.63
100+
$30.59
200+
$30.18
250+
$29.78
500+
$29.37
1000+
$28.55
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Dynamic load C | 23.4 kN |
| Static load Co | 11.6 kN |
| Fatigue load limit Pu | 0.49 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.23 kg |
| d1 | 36.6mm |
| D2 | 52.7mm |
| r1r2 min | 1.1mm |
| da min | 32mm |
| Da max | 55mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 12 |
