SKU: 6305-2RS1-EU

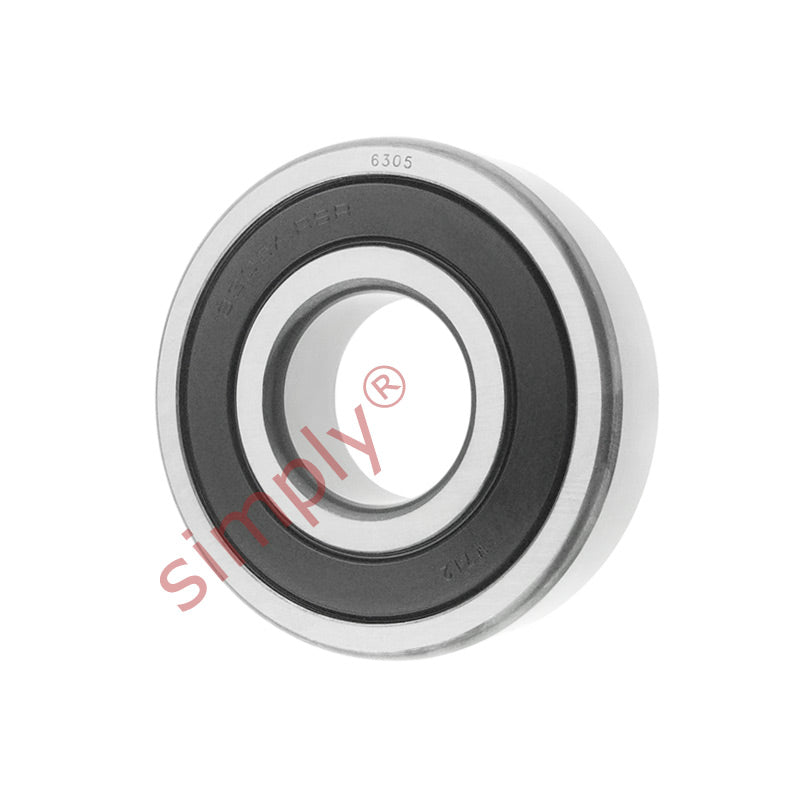

63052RS Budget Rubber Sealed Deep Groove Ball Bearing 25x62x17mm
Equivalent to: 6305NSE 6305DU 6305RS 63052RSH 6305P 6305RSR 6305LU 63052NSE 6305DDU 63052RS 630522RSH 6305PP 63052RSR 6305LLU 63052RS2 6305RS2 63052RSH 63052RS1
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| r min | 1.1mm |
| Dynamic load Cr | 20.6 kN |
| Static load Cor | 11.3 kN |
| Speed in grease | 11000 rpm |
| Speed in oil | 13000 rpm |
