SKU: 6305-2Z/VA228-SKF

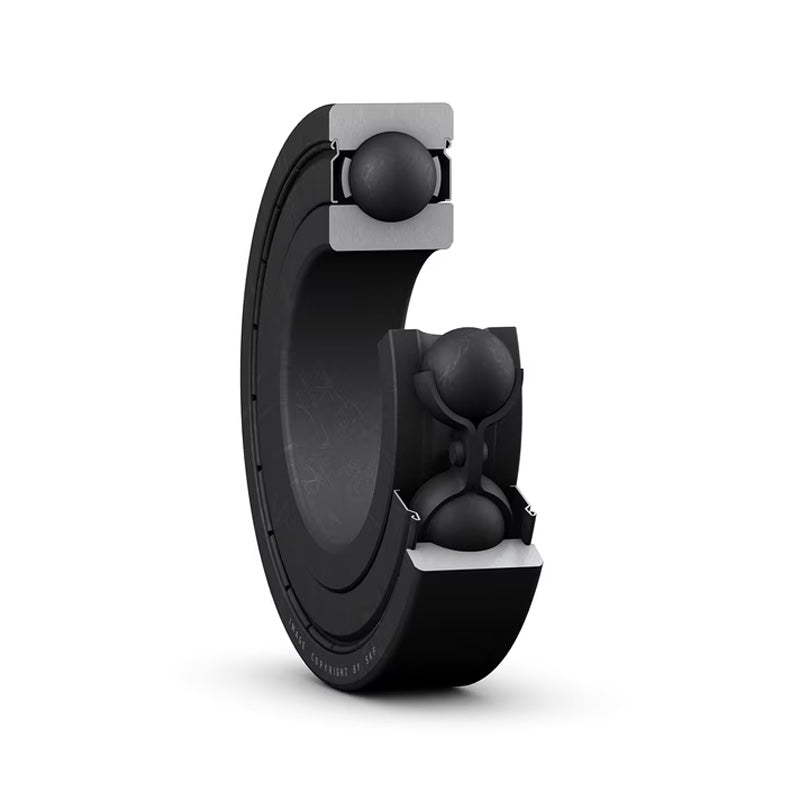

SKF 63052ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 25x62x17mm

Name: SKF 63052ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 25x62x17mm
Brand: SKF
SKU: 6305-2Z/VA228-SKF
Price: 194.67 USD
Availability: InStock

$194.67 ex VAT

Sale Sold out

In stock

Price Break

10+ $130.39

19+ $123.07

29+ $121.60

39+ $120.14

49+ $118.67

74+ $117.21

99+ $109.88

199+ $108.42

249+ $106.95

499+ $105.49

999+ $102.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 62mm
Width:: 17mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	25mm
D	62mm
B	17mm
d1	36.6mm
D2	52.7mm
r1r2	1.1mm
Basic load rating Co	11.6 kN
Weight	0.22 kg
Max operating temp	+350 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
