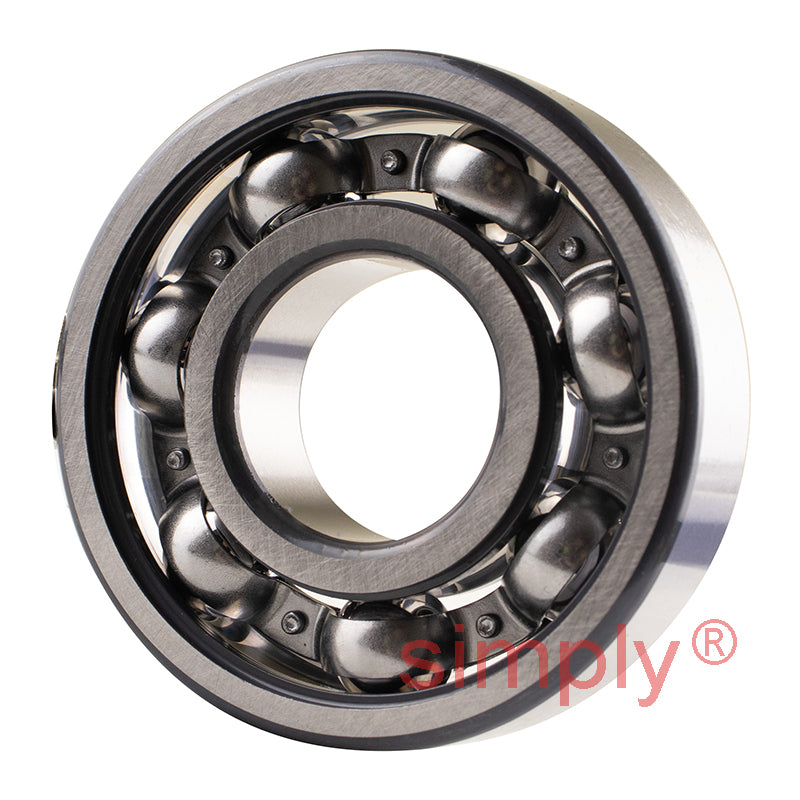

• FAG 6305 Open Deep Groove Ball Bearing 25x62x17mm
  • FAG 6305 Open Deep Groove Ball Bearing 25x62x17mm
  • FAG 6305 Open Deep Groove Ball Bearing 25x62x17mm
  • FAG
1 4

SKU: 6305-FAG

FAG 6305 Open Deep Groove Ball Bearing 25x62x17mm

FAG 6305 Open Deep Groove Ball Bearing 25x62x17mm
$11.79 ex VAT
$11.79 ex VAT
Sale Sold out

In stock

Price Break
10+ $7.89
19+ $7.45
29+ $7.36
39+ $7.27
49+ $7.18
74+ $7.10
99+ $6.65
199+ $6.56
249+ $6.48
499+ $6.39
999+ $6.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 25mm
D 62mm
B 17mm
Dynamic load C 23.4 kN
Static load Co 11.6 kN
Fatigue load limit Pu 0.49 kN
Reference speed 24000 rpm
Limiting speed 16000 rpm
Mass 0.23 kg
d1 36.6mm
D1 50.4mm
D2 52.7mm
r1r2 min 1.1mm
da min 32mm
Da max 55mm
ra max 1mm
Calc factor Kr 0.03
Calc factor 12
