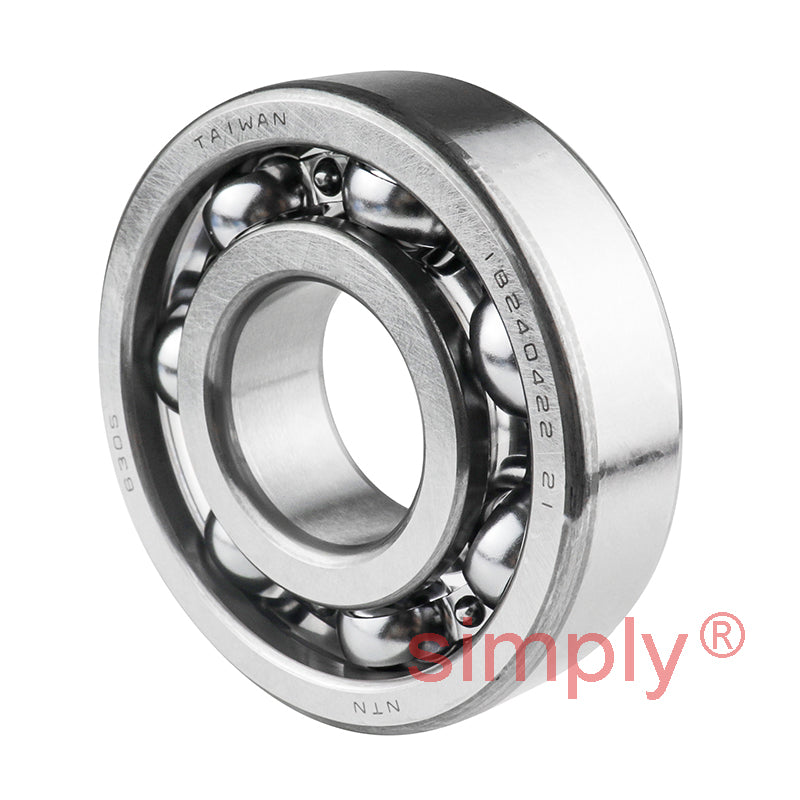

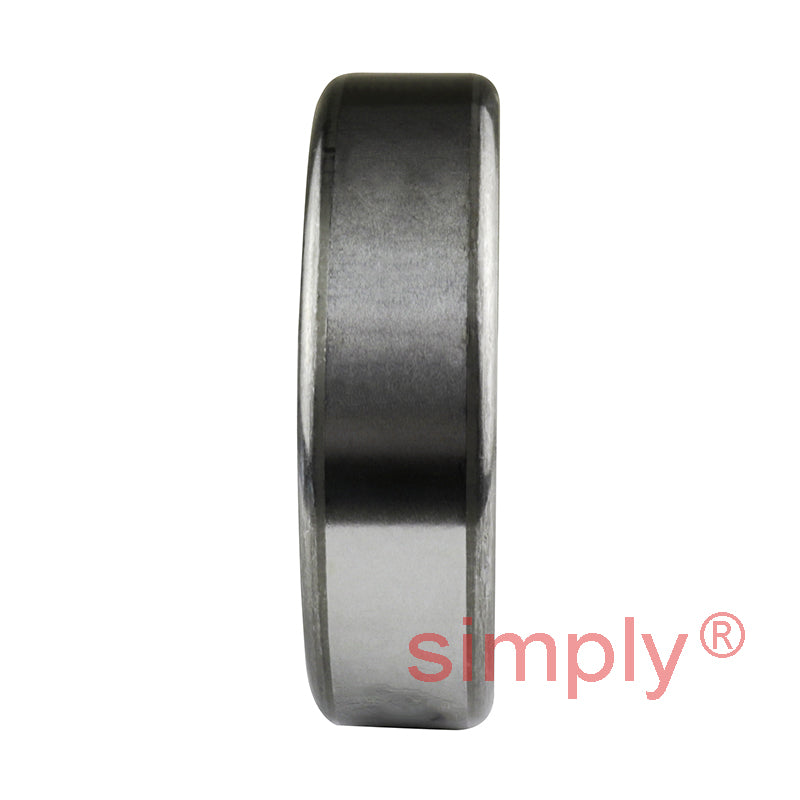

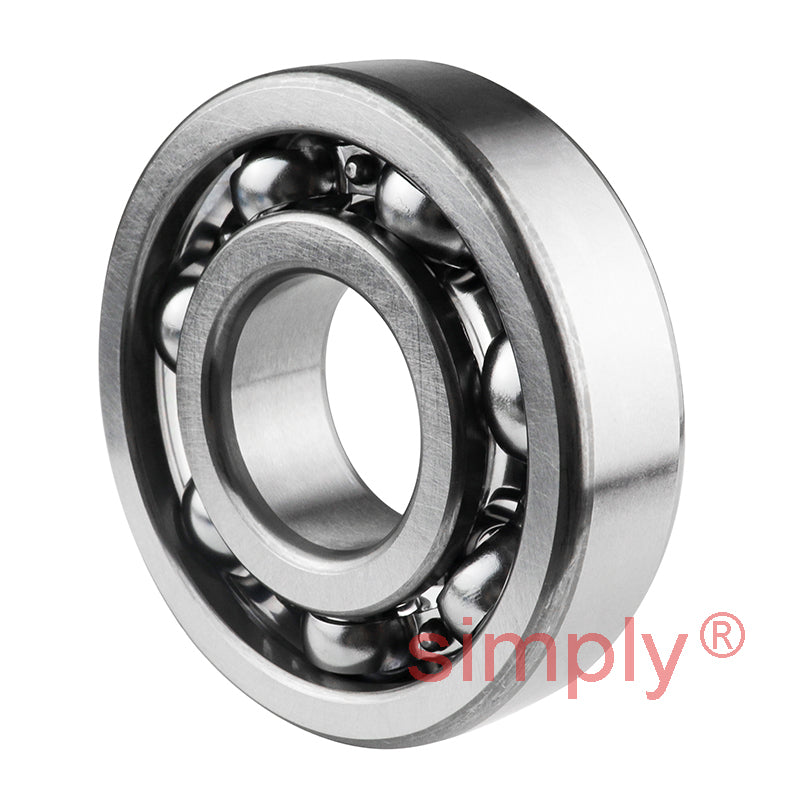

• NTN 6305 Open Type Deep Groove Ball Bearing 25x62x17mm
  • NTN 6305 Open Type Deep Groove Ball Bearing 25x62x17mm
  • NTN 6305 Open Type Deep Groove Ball Bearing 25x62x17mm
  • NTN
1 4

SKU: 6305-NTN

NTN 6305 Open Type Deep Groove Ball Bearing 25x62x17mm

NTN 6305 Open Type Deep Groove Ball Bearing 25x62x17mm
$13.34 ex VAT
$13.34 ex VAT
Sale Sold out

Equivalent to: 6305CM 305K 1305 305KS 6305 3305 6B

In stock

Price Break
3+ $8.94
5+ $8.43
10+ $8.33
25+ $8.23
49+ $8.13
74+ $8.03
99+ $7.53
199+ $7.43
249+ $7.33
499+ $7.23
999+ $7.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 25mm
D 62mm
B 17mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 23.5 kN
C<sub>or</sub> 10.9 kN
C<sub>u</sub> 0.855 kN
f<sub>0</sub> 12.6 kN
Grease 12000 rpm
Oil 14000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 31.5mm
D<sub>a</sub> Max. 55.5mm
r<sub>as</sub> Max. 1mm
Weight 0.232 kg
