• NSK 6305ZNR Deep Groove Ball Bearing with One Metal Shield and Snap Ring 25x62x17mm
  • NSK
1 2

SKU: 6305-ZNR-NSK

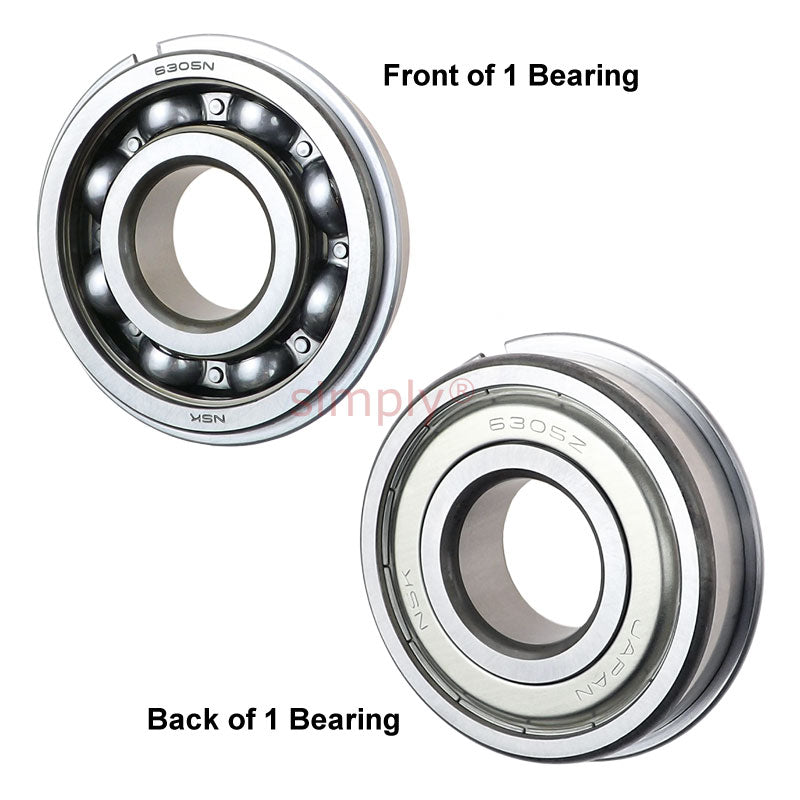

NSK 6305ZNR Deep Groove Ball Bearing with One Metal Shield and Snap Ring 25x62x17mm

NSK 6305ZNR Deep Groove Ball Bearing with One Metal Shield and Snap Ring 25x62x17mm
$34.25 ex VAT
$34.25 ex VAT
Sale Sold out

Equivalent to: 6305ZNR

In stock

Price Break
4+ $22.94
10+ $21.65
20+ $21.39
30+ $21.14
50+ $20.88
75+ $20.62
100+ $19.33
200+ $19.07
250+ $18.82
500+ $18.56
1000+ $18.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NSK - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
17mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
d 25mm
D 62mm
B 17mm
r min 1.1mm
Dynamic load Cr 20600 N (2100 kgf)
Static load Cor 11200 N (1150 kgf)
Factor 13.2
Speed in grease 11000 rpm
Speed in oil 13000 rpm
a max 3.28mm
b min 1.9mm
D1 max 59.61mm
ro max 0.6mm
rN min 0.5mm
D2 max 67.7mm
f max 1.7mm
da2 min 31.5mm
da2max 36mm
Da2max 55.5mm
ra max 1mm
Dx min 68.5mm
Cy max 4.6mm
Weight 0.235 kg
