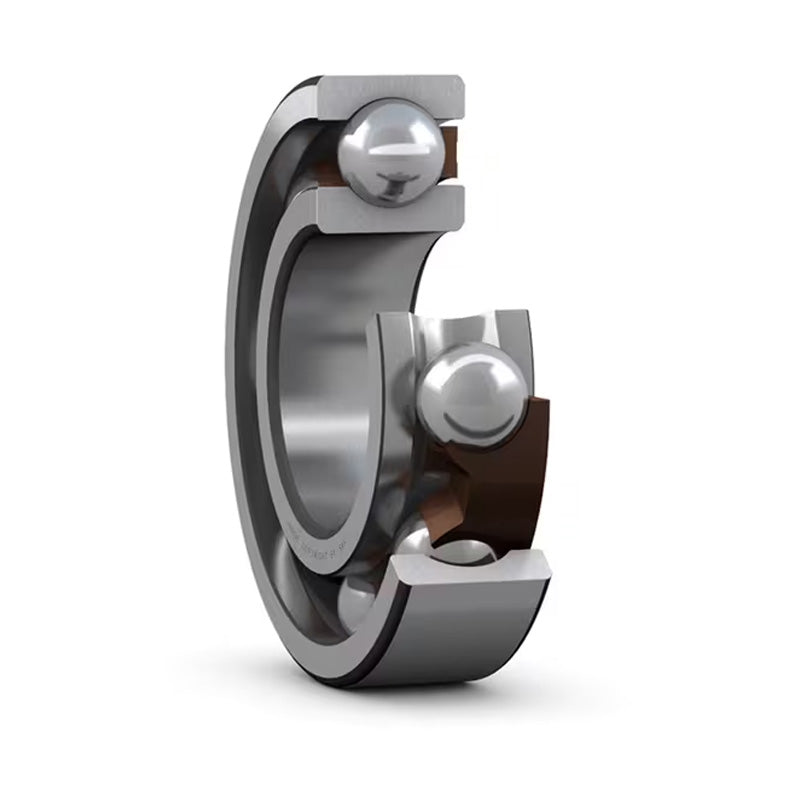

• SKF 6305ETN9 Open Deep Groove Ball Bearing with Fibre Cage 25x62x17mm
1 1

SKU: 6305ETN9-SKF

SKF 6305ETN9 Open Deep Groove Ball Bearing with Fibre Cage 25x62x17mm

SKF 6305ETN9 Open Deep Groove Ball Bearing with Fibre Cage 25x62x17mm
$56.30 ex VAT
$56.30 ex VAT
Sale Sold out

In stock

Price Break
4+ $37.71
10+ $35.59
20+ $35.17
30+ $34.74
50+ $34.32
75+ $33.90
100+ $31.78
200+ $31.35
250+ $30.93
500+ $30.51
1000+ $29.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 25mm
D 62mm
B 17mm
Dynamic load 26 kN
Static load 13.4 kN
Fatigue load limit Pu 0.57 kN
Reference speed 24000 rpm
Limiting speed 16000 rpm
Weight 0.21 kg
d1 36.4mm
D1 51.7mm
D2 n/amm
r1r2 min 1.1mm
da min 32mm
Da max 55mm
ra max 1mm
Calculation factor kr 0.03
Calculation factor Cor 12
