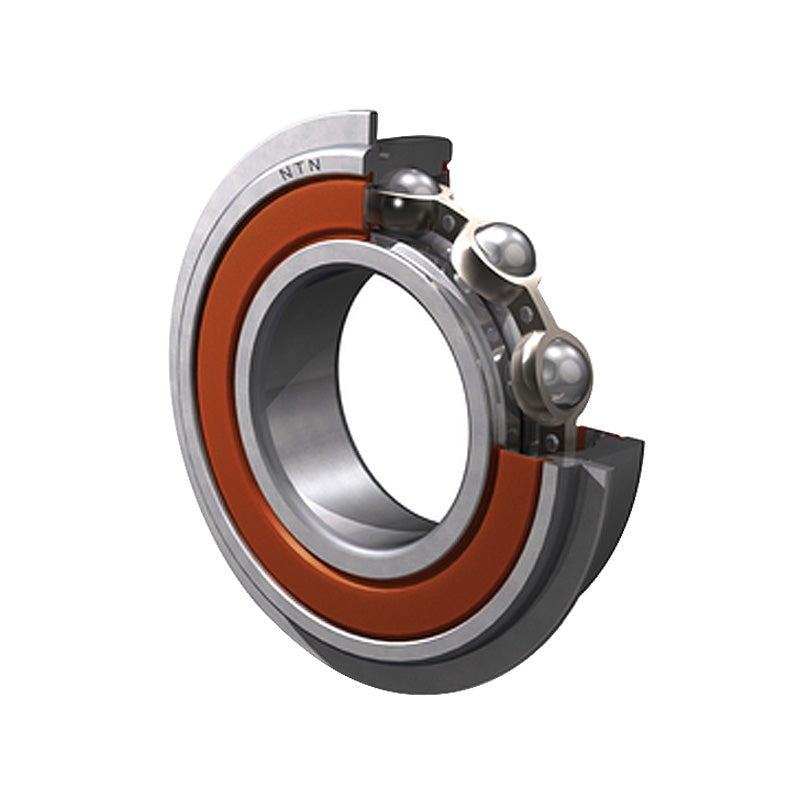

• NTN 6305LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 25x62x17mm
1 1

SKU: 6305LLUNR/2AS-NTN

NTN 6305LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 25x62x17mm

NTN 6305LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 25x62x17mm
$39.05 ex VAT
$39.05 ex VAT
Sale Sold out

Equivalent to: 6305LLUNRCM 6305LLUNR 6305NSENR 6305DUNR 6305RSNR 6305RSHNR 6305PNR 6305RSRNR 6305LUNR 63052NSENR 6305DDUNR 63052RSNR 6305-2RSNR 63052RS1NR 63052RSHNR 6305PPNR 63052RSRNR 6305LLUNR 6305RS2NR 63052RS2NR 63052RSLNR 6305LFSNR 6305EENR 305SZZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
17mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 25mm
D 62mm
B 17mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 23.5 kN
C<sub>or</sub> 10.9 kN
C<sub>u</sub> 0.855 kN
f<sub>0</sub> 12.6
--- Fitting Dimensions
Speed 8100rpm
D<sub>1</sub> Max. 59.61mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
