SKU: 6305NR/C3-SKF

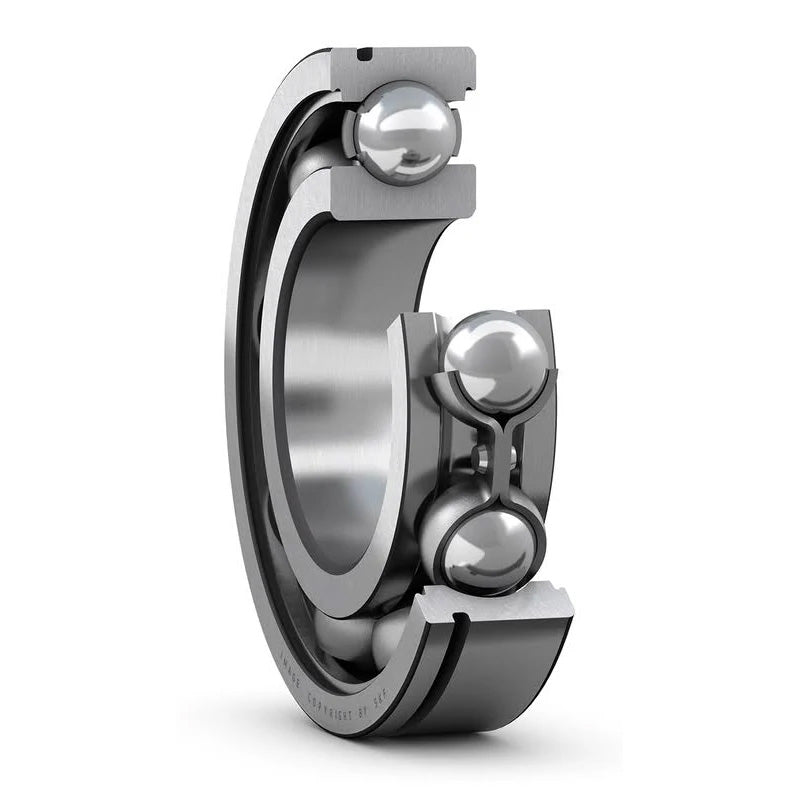

SKF 6305NRC3 Open Type Snap Ring Deep Groove Bearing 25x62x17mm
SKF 6305NRC3 Open Type Snap Ring Deep Groove Bearing 25x62x17mm
Regular price
$39.78
ex VAT
Regular price
Sale price
$39.78
ex VAT
In stock
Price Break
4+
$26.65
10+
$25.15
20+
$24.85
30+
$24.55
50+
$24.25
75+
$23.95
100+
$22.46
200+
$22.16
250+
$21.86
500+
$21.56
1000+
$20.96
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Dynamic load C | 23.4 kN |
| Static load Co | 11.6 kN |
| Fatigue load limit Pu | 0.49 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.22kg |
| Snap ring | SP 62 |
| d1 | 36.6mm |
| D2 | 52.7mm |
| D3 | 59.61mm |
| D4 | 67.7mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 3.28mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 32mm |
| Da max | 55mm |
| Db min | 69mm |
| ba min | 2.2mm |
| Ca max | 4.98mm |
| ra max | 1mm |
| Calc Factor kr | 0.03 |
| fo | 12 |
