SKU: 6306-2RSR-FAG

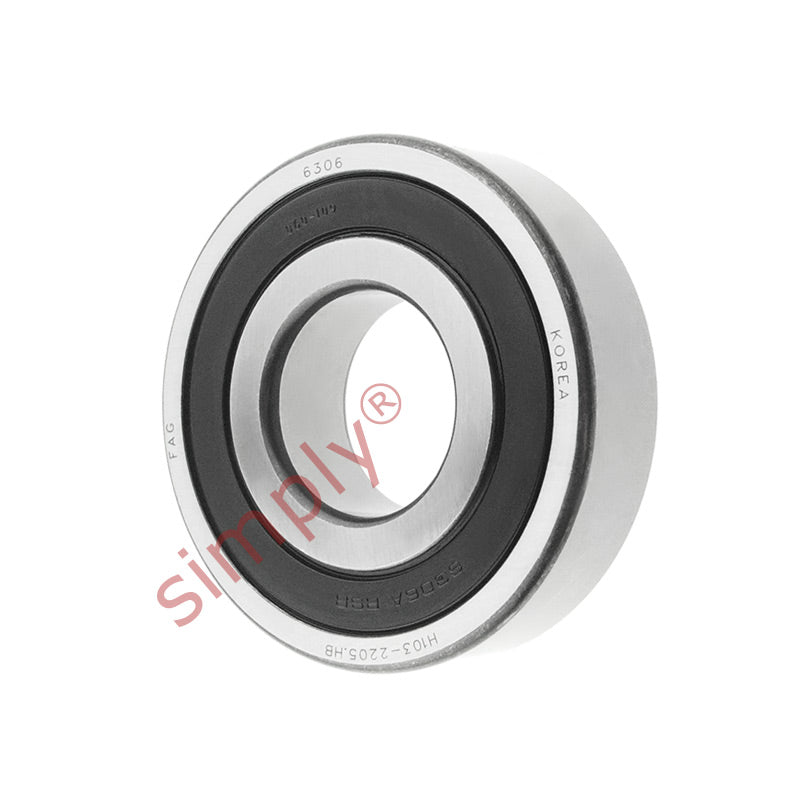

FAG 63062RSR Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
FAG 63062RSR Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
Regular price
$22.60
ex VAT
Regular price
Sale price
$22.60
ex VAT
Equivalent to: 6306NSE 6306DU 6306RS 6306RSH 6306P 6306RSR 6306LU 63062NSE 6306DDU 63062RS 63062RS1 63062RSH 6306PP 6306LLU
In stock
Price Break
10+
$15.14
19+
$14.29
29+
$14.12
39+
$13.95
49+
$13.78
74+
$13.61
99+
$12.76
199+
$12.59
249+
$12.42
499+
$12.25
999+
$11.91
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 32.5 kN |
| Static load Co | 17.3 kN |
| Fatigue load limit Pu | 0.74 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Mass | 0.33 kg |
| d1 | 42.5mm |
| d2 | 59.7mm |
| D2 | -mm |
| r1r2 min | 1.1mm |
| da min | 37 |
