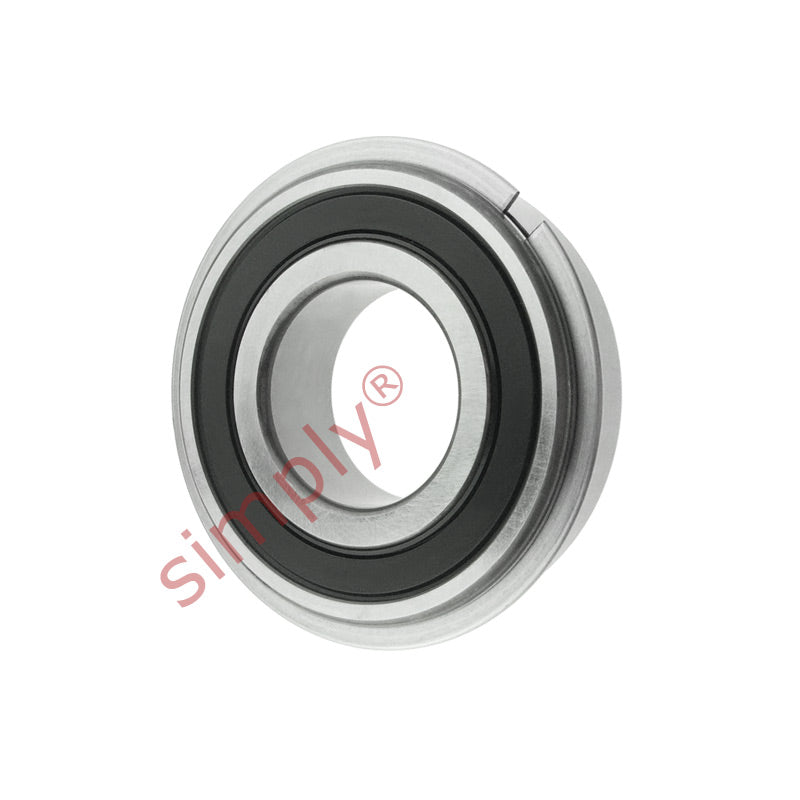

• NSK 6306DDUNR Rubber Sealed Deep Groove Ball Bearing With Snap Ring 30x72x19mm
  • NSK
1 2

SKU: 6306DDUNR-NSK

NSK 6306DDUNR Rubber Sealed Deep Groove Ball Bearing With Snap Ring 30x72x19mm

NSK 6306DDUNR Rubber Sealed Deep Groove Ball Bearing With Snap Ring 30x72x19mm
$84.52 ex VAT
$84.52 ex VAT
Sale Sold out

Equivalent to: 6306DUNR

In stock

Price Break
4+ $56.61
10+ $53.43
20+ $52.79
30+ $52.16
50+ $51.52
75+ $50.89
100+ $47.71
200+ $47.07
250+ $46.43
500+ $45.80
1000+ $44.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
30mm
Outside Diameter:
72mm
Width:
19mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
d 30mm
D 72mm
B 19mm
r min 1.1mm
Dynamic load Cr 26700 N (2720 kgf)
Static load Cor 15000 N (1530 kgf)
Factor 13.3
Speed in grease 6700 rpm
Speed in oil 12000 rpm
a max 3.28mm
b min 1.9mm
D1 max 68.81mm
ro max 0.6mm
rN min 0.5mm
D2 max 78.6mm
f max 1.7mm
da2 min 36.5mm
da2max 42.5mm
Da2max 65.5mm
ra max 1mm
Dx min 80mm
Cy max 4.6mm
Weight 0.345 kg
