• NTN 6306LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 30x72x19mm
1 1

SKU: 6306LLUNR/2AS-NTN

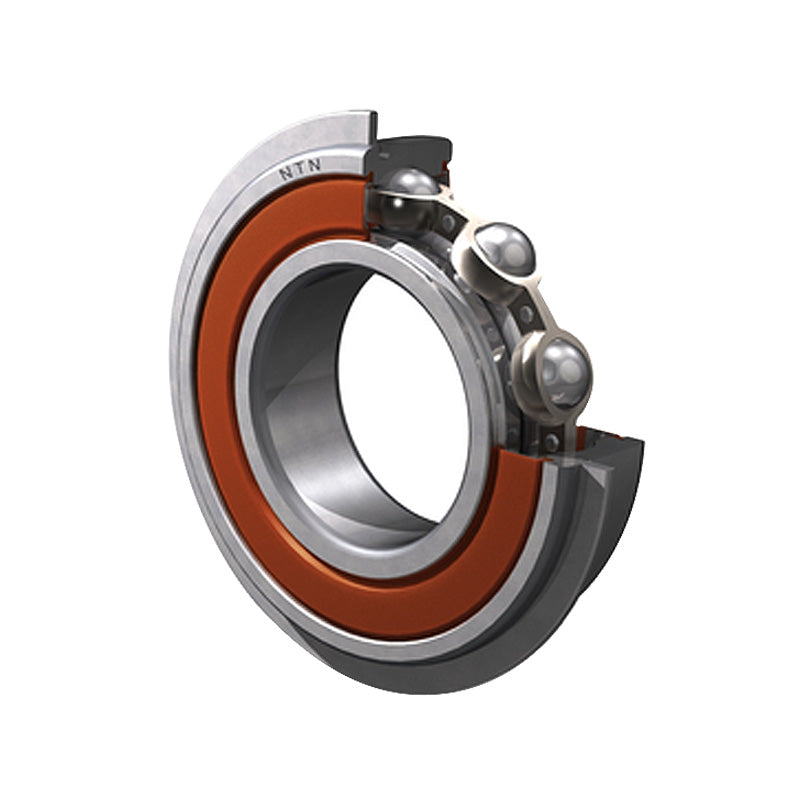

NTN 6306LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 30x72x19mm

NTN 6306LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 30x72x19mm
$94.52 ex VAT
$94.52 ex VAT
Sale Sold out

Equivalent to: 6306LLUNRCM 6306LLUNR 6306NSENR 6306DUNR 6306RSNR 6306RSHNR 6306PNR 6306RSRNR 6306LUNR 63062NSENR 6306DDUNR 63062RSNR 6306-2RSNR 63062RS1NR 63062RSHNR 6306PPNR 63062RSRNR 6306LLUNR 6306RS2NR 63062RS2NR 63062RSLNR 6306LFSNR 6306EENR 306SZZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Outside Diameter:
72mm
Width:
19mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 30mm
D 72mm
B 19mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 29.5 kN
C<sub>or</sub> 15 kN
C<sub>u</sub> 1.14 kN
f<sub>0</sub> 13.3
--- Fitting Dimensions
Speed 6600rpm
D<sub>1</sub> Max. 68.81mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
