• NSK 6306NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 30x72x19mm
  • NSK
1 2

SKU: 6306NRC3-NSK

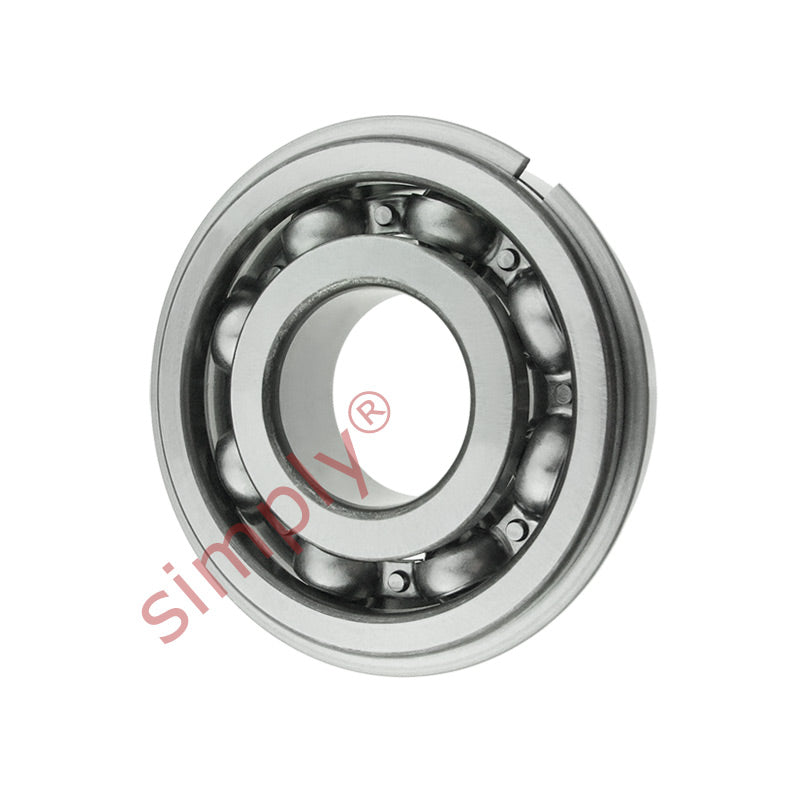

NSK 6306NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 30x72x19mm

NSK 6306NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 30x72x19mm
$37.56 ex VAT
$37.56 ex VAT
Sale Sold out

In stock

Price Break
4+ $25.16
10+ $23.75
20+ $23.47
30+ $23.19
50+ $22.90
75+ $22.62
100+ $21.21
200+ $20.92
250+ $20.64
500+ $20.36
1000+ $19.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NSK - High Quality
Inside Diameter:
30mm
Outside Diameter:
72mm
Width:
19mm
Seals / Shields:
None
Clearance:
C3
Snap Ring:
Snap Ring
Technical
d 30mm
D 72mm
B 19mm
r min 1.1mm
Dynamic load Cr 26700 N (2720 kgf)
Static load Cor 15000 N (1530 kgf)
Factor 13.3
Speed in grease 9500 rpm
Speed in oil 12000 rpm
a max 3.28mm
b min 1.9mm
D1 max 68.81mm
ro max 0.6mm
rN min 0.5mm
D2 max 78.6mm
f max 1.7mm
da2 min 36.5mm
da2max 42.5mm
Da2max 65.5mm
ra max 1mm
Dx min 80mm
Cy max 4.6mm
Weight 0.345 kg
