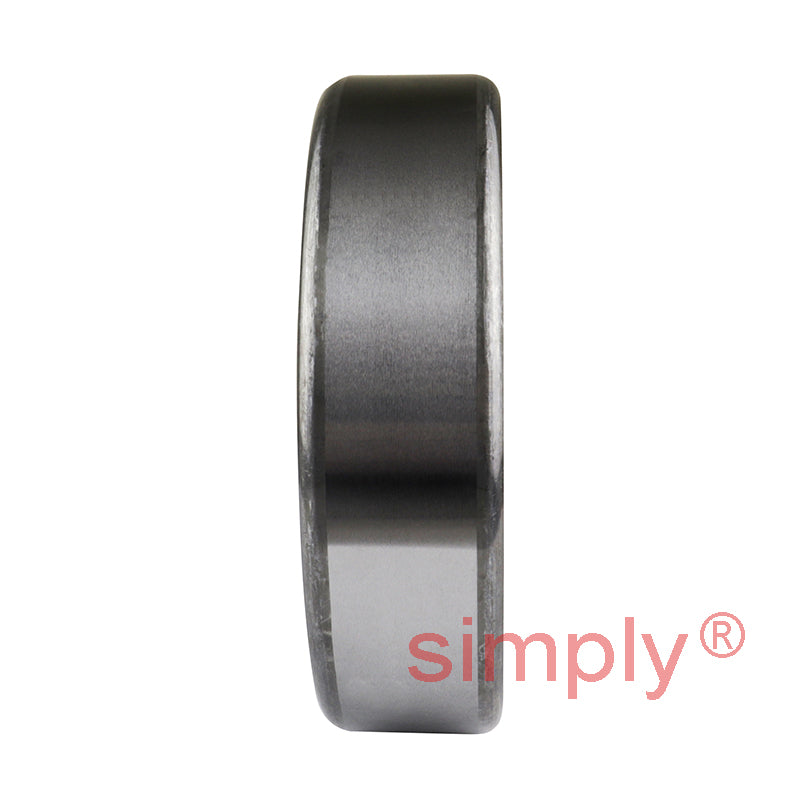

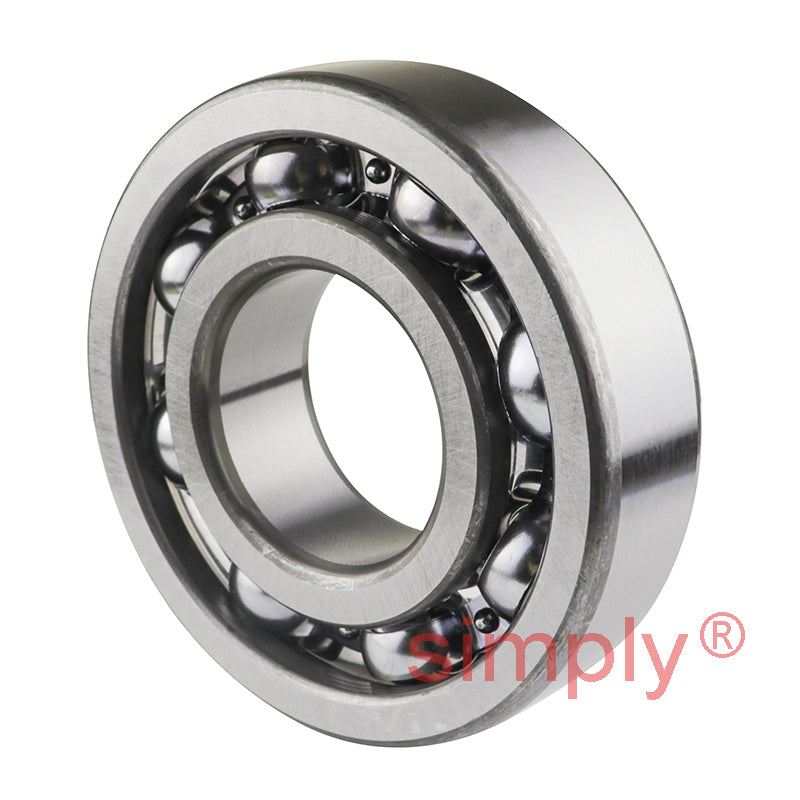

• NTN 6307 Open Type Deep Groove Ball Bearing 35x80x21mm
  • NTN 6307 Open Type Deep Groove Ball Bearing 35x80x21mm
  • NTN 6307 Open Type Deep Groove Ball Bearing 35x80x21mm
  • NTN
1 4

SKU: 6307-NTN

NTN 6307 Open Type Deep Groove Ball Bearing 35x80x21mm

NTN 6307 Open Type Deep Groove Ball Bearing 35x80x21mm
$24.05 ex VAT
$24.05 ex VAT
Sale Sold out

Equivalent to: 6307CM 307K 1307 307KS 6307 3307 8B

In stock

Price Break
3+ $16.11
5+ $15.20
10+ $15.02
25+ $14.84
49+ $14.66
74+ $14.48
99+ $13.58
199+ $13.39
249+ $13.21
499+ $13.03
999+ $12.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
80mm
Width:
21mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 35mm
D 80mm
B 21mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
C<sub>r</sub> 37 kN
C<sub>or</sub> 19.1 kN
C<sub>u</sub> 1.47 kN
f<sub>0</sub> 13.1 kN
Grease 8800 rpm
Oil 10000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 43mm
D<sub>a</sub> Max. 72mm
r<sub>as</sub> Max. 1.5mm
Weight 0.457 kg
Downloads
Reviews
View full details
