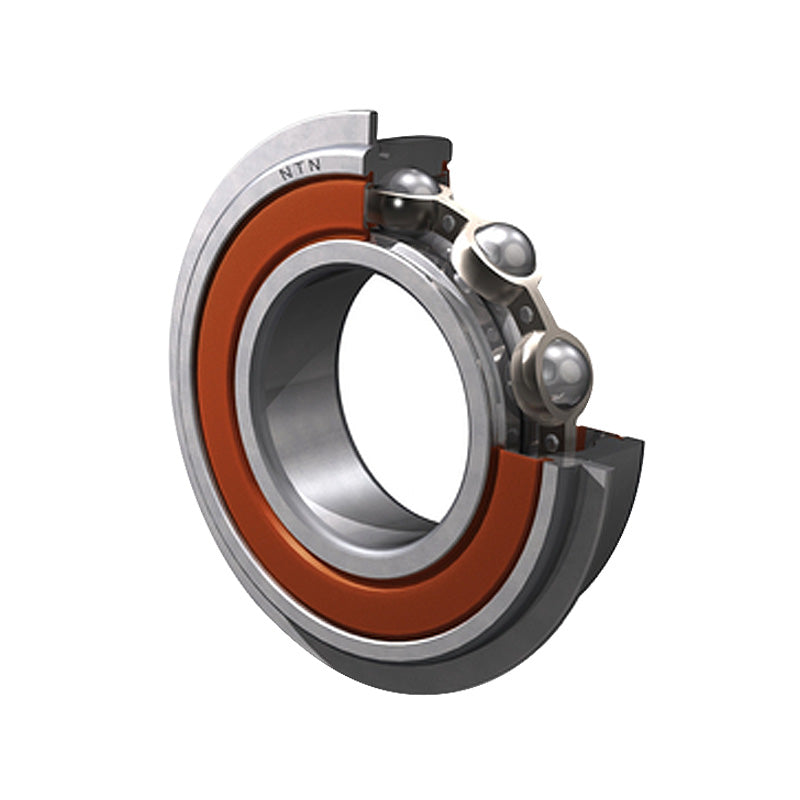

• NTN 6307LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 35x80x21mm
1 1

SKU: 6307LLUNR/2AS-NTN

NTN 6307LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 35x80x21mm

NTN 6307LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 35x80x21mm
$82.22 ex VAT
$82.22 ex VAT
Sale Sold out

Equivalent to: 6307LLUNRCM 6307LLUNR 6307NSENR 6307DUNR 6307RSNR 6307RSHNR 6307PNR 6307RSRNR 6307LUNR 63072NSENR 6307DDUNR 63072RSNR 6307-2RSNR 63072RS1NR 63072RSHNR 6307PPNR 63072RSRNR 6307LLUNR 6307RS2NR 63072RS2NR 63072RSLNR 6307LFSNR 6307EENR 307SZZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
80mm
Width:
21mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 35mm
D 80mm
B 21mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 37 kN
C<sub>or</sub> 19.1 kN
C<sub>u</sub> 1.47 kN
f<sub>0</sub> 13.1
--- Fitting Dimensions
Speed 6000rpm
D<sub>1</sub> Max. 76.81mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
