SKU: 6308-2RS1-EU

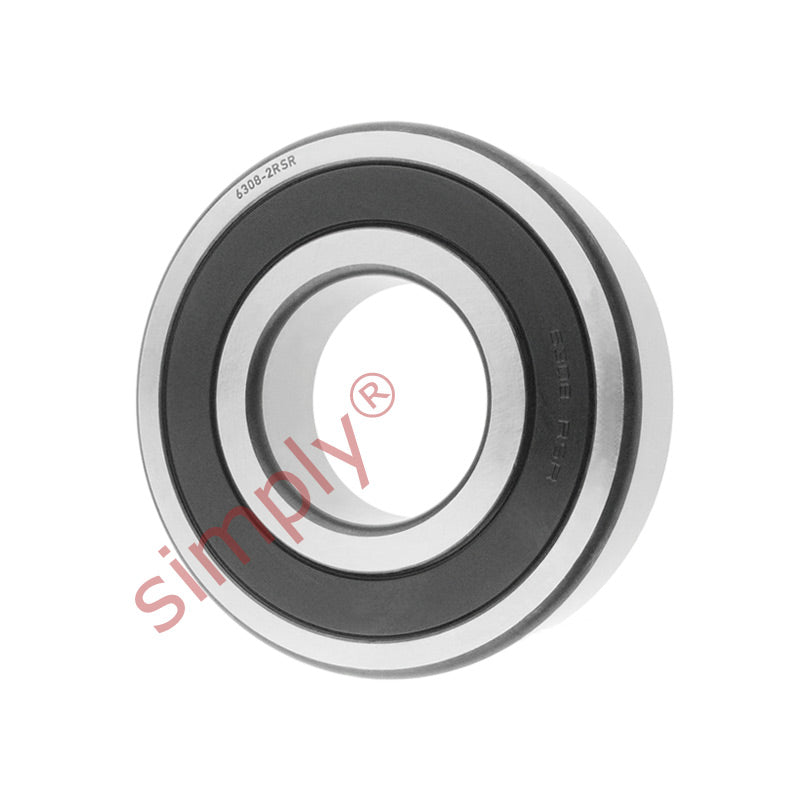

63082RS Budget Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
Equivalent to: 6308NSE 6308DU 6308RS 63082RSH 6308P 6308RSR 6308LU 63082NSE 6308DDU 63082RS 630822RSH 6308PP 63082RSR 6308LLU 63082RS2 6308RS2 63082RSH 63082RS1
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| r min | 1.5mm |
| Dynamic load Cr | 40.7 kN |
| Static load Cor | 24 kN |
| Speed in grease | 7700 rpm |
| Speed in oil | 9200 rpm |
