SKU: 6308-2Z/V201-SKF

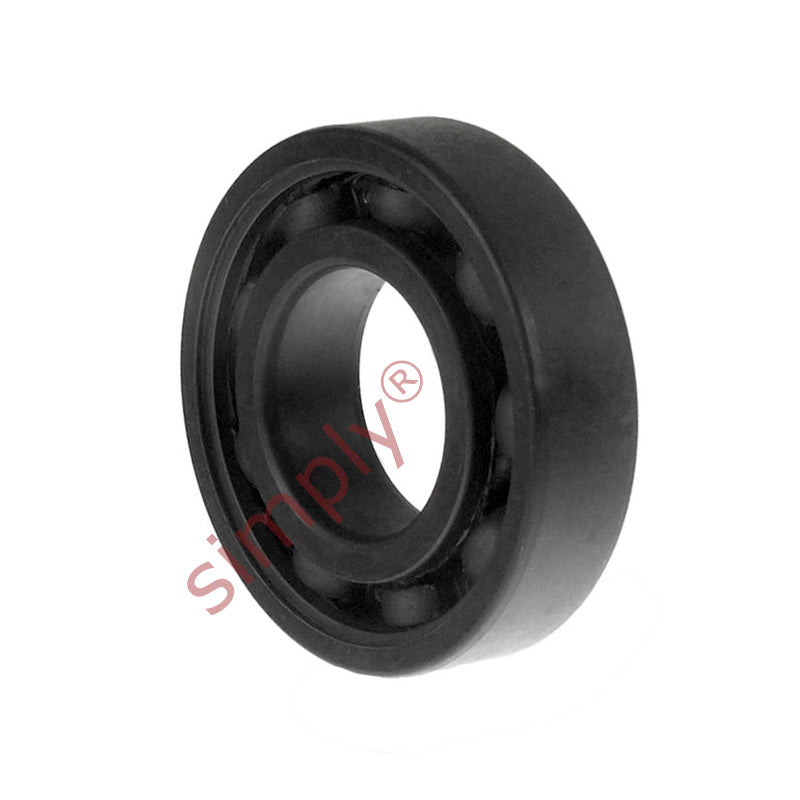

SKF 63082ZV201 Single Row Deep Groove Ball Bearing High Temperature Type 40x90x23mm
SKF 63082ZV201 Single Row Deep Groove Ball Bearing High Temperature Type 40x90x23mm
Out of stock
Share this product
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| d1 | 56.1mm |
| D2 | 77.7mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 24 kN |
| Weight | 0.63 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
