SKU: 6308-2Z/VA228-SKF

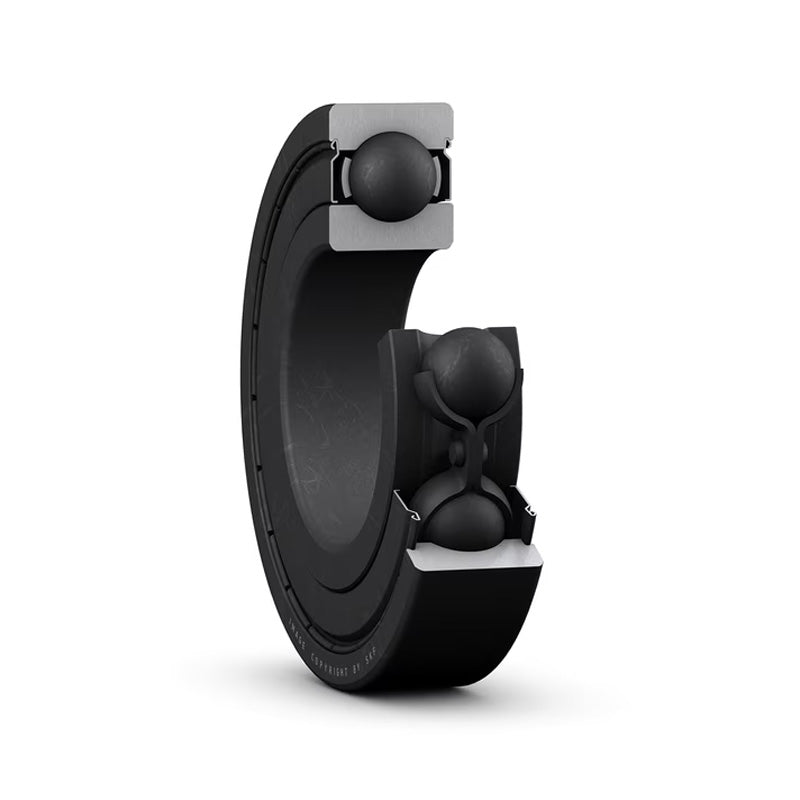

SKF 63082ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 40x90x23mm

Name: SKF 63082ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 40x90x23mm
Brand: SKF
SKU: 6308-2Z/VA228-SKF
Price: 220.47 USD
Availability: InStock

$220.47 ex VAT

Sale Sold out

In stock

Price Break

10+ $147.68

19+ $139.38

29+ $137.72

39+ $136.06

49+ $134.40

74+ $132.74

99+ $124.45

199+ $122.79

249+ $121.13

499+ $119.47

999+ $116.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 90mm
Width:: 23mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	40mm
D	90mm
B	23mm
d1	56.1mm
D2	77.7mm
r1r2	1.5mm
Basic load rating Co	24 kN
Weight	0.61 kg
Max operating temp	+350 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
