SKU: 6308-MB

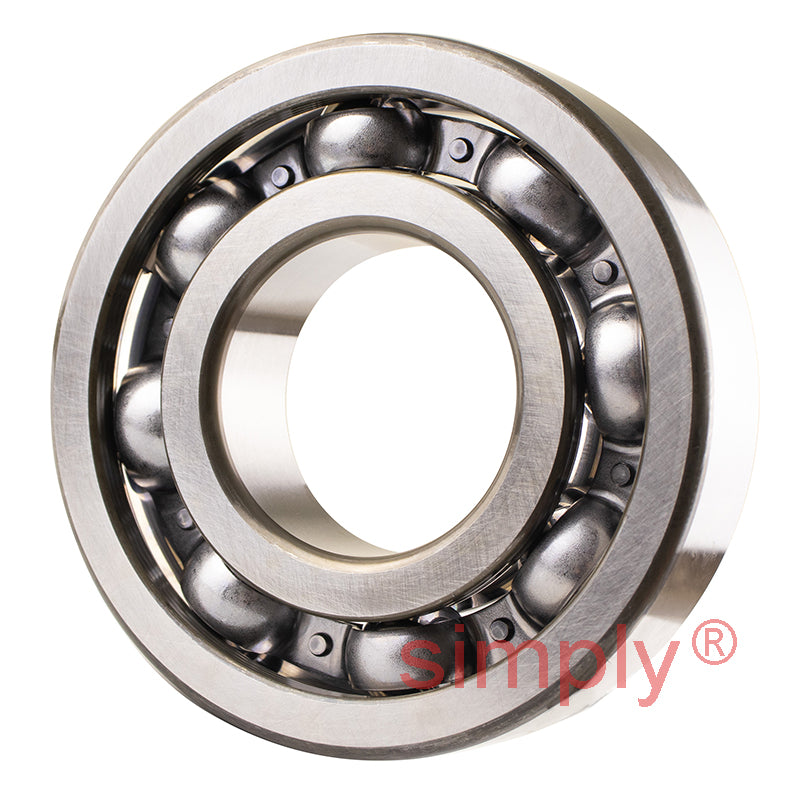

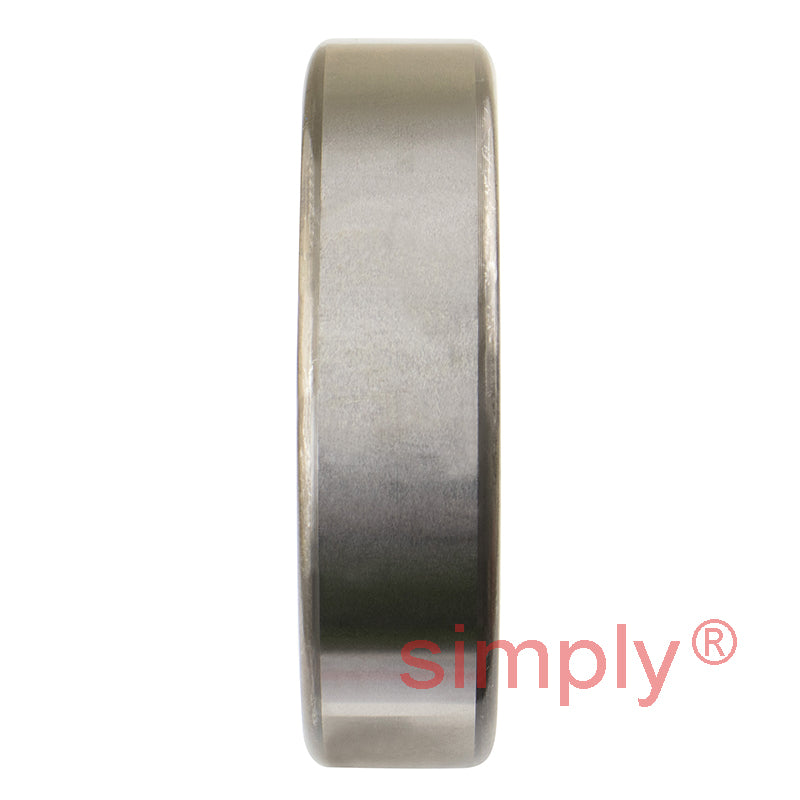

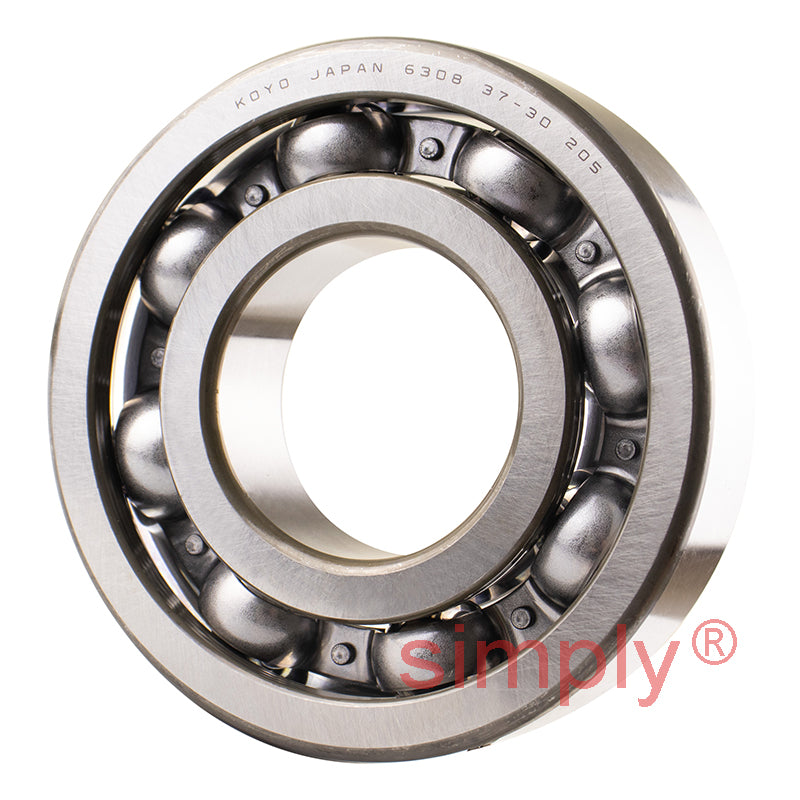

Major Branded 6308 Open Deep Groove Ball Bearing 40x90x23mm

Major Branded 6308 Open Deep Groove Ball Bearing 40x90x23mm
$28.46 ex VAT
$28.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $19.06
19+ $17.99
29+ $17.78
39+ $17.56
49+ $17.35
74+ $17.14
99+ $16.07
199+ $15.85
249+ $15.64
499+ $15.42
999+ $14.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
40mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 40mm
D 90mm
B 23mm
Dynamic load C 42.3 kN
Static load Co 24 kN
Fatigue load limit Pu 1.02 kN
Reference speed 17000 rpm
Limiting speed 11000 rpm
Mass 0.63 kg
d1 56.11mm
D1 -mm
D2 77.7mm
r1r2 min 1.5mm
da min 49mm
Da max 81mm
ra max 1.5mm
Calc factor Kr 0.03
Calc factor 13.2
