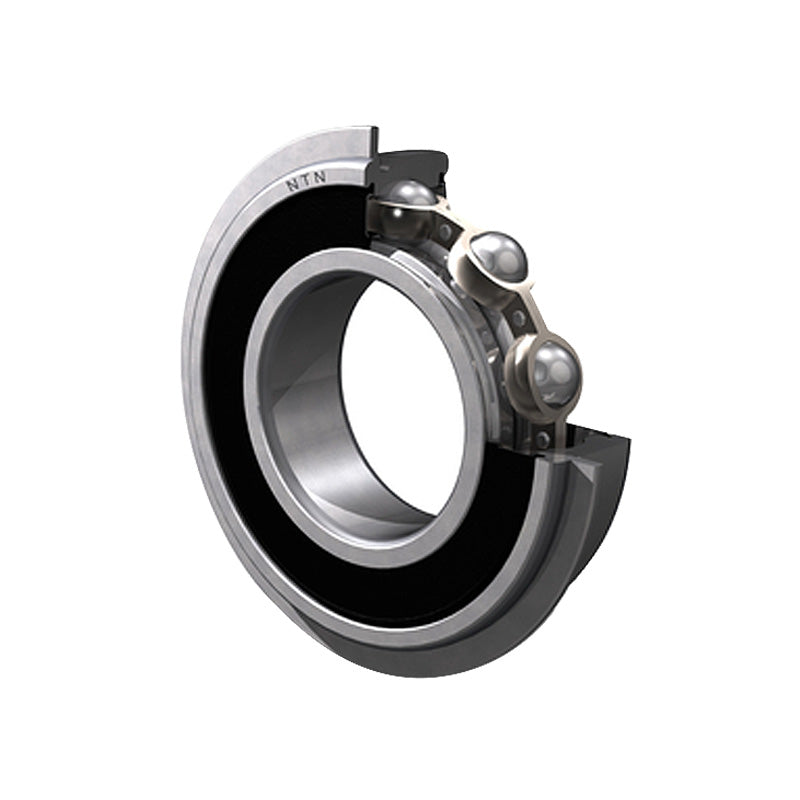

• NTN 6308LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 40x90x23mm
1 1

SKU: 6308LLBNR/2AS-NTN

NTN 6308LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 40x90x23mm

NTN 6308LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 40x90x23mm
$58.04 ex VAT
$58.04 ex VAT
Sale Sold out

Equivalent to: 6308LLBNRCM 6308LLBNR 63082NKENR 6308VVNR 63082RSLNR 63082RZNR

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_RSWT
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 40mm
D 90mm
B 23mm
r<sub>s</sub> min 1.5
--- Loads angles and speeds
rNS Min. 0.5
C<sub>r</sub> 45 kN
C<sub>or</sub> 24 kN
C<sub>u</sub> 1.83 kN
f<sub>0</sub> 13.2
Grease 7800 rpm
--- Fitting Dimensions
Oil 9200 rpm
D<sub>1</sub> Max. 86.79mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
