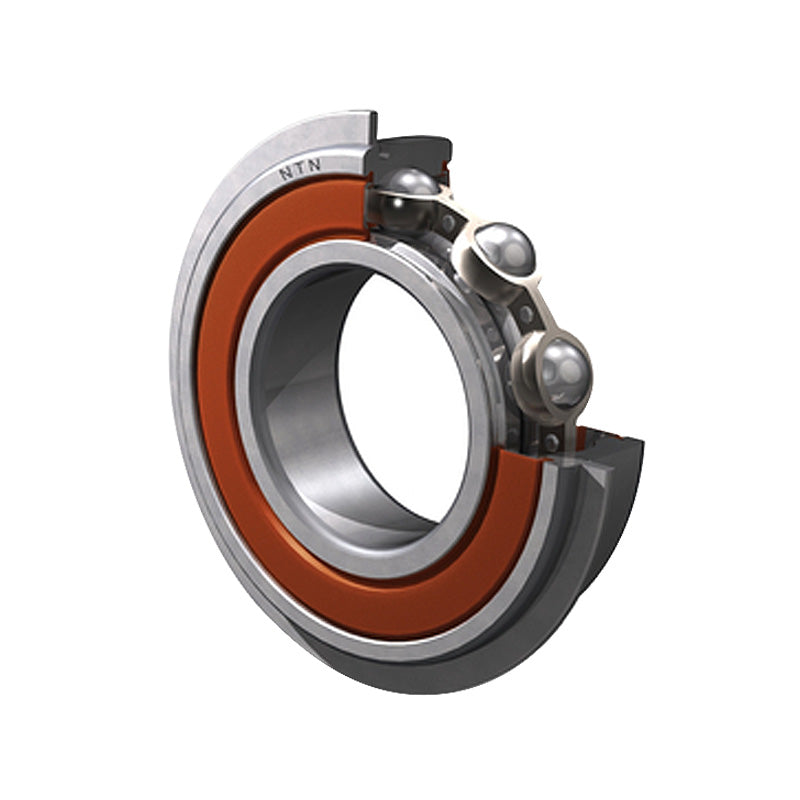

• NTN 6308LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 40x90x23mm
1 1

SKU: 6308LLUNR/2AS-NTN

NTN 6308LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 40x90x23mm

NTN 6308LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 40x90x23mm
$127.17 ex VAT
$127.17 ex VAT
Sale Sold out

Equivalent to: 6308LLUNRCM 6308LLUNR 6308NSENR 6308DUNR 6308RSNR 6308RSHNR 6308PNR 6308RSRNR 6308LUNR 63082NSENR 6308DDUNR 63082RSNR 6308-2RSNR 63082RS1NR 63082RSHNR 6308PPNR 63082RSRNR 6308LLUNR 6308RS2NR 63082RS2NR 63082RSLNR 6308LFSNR 6308EENR 308SZZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 40mm
D 90mm
B 23mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 45 kN
C<sub>or</sub> 24 kN
C<sub>u</sub> 1.83 kN
f<sub>0</sub> 13.2
--- Fitting Dimensions
Speed 5300rpm
D<sub>1</sub> Max. 86.79mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
