SKU: 6309-2RS/C3-EMQ-CDX

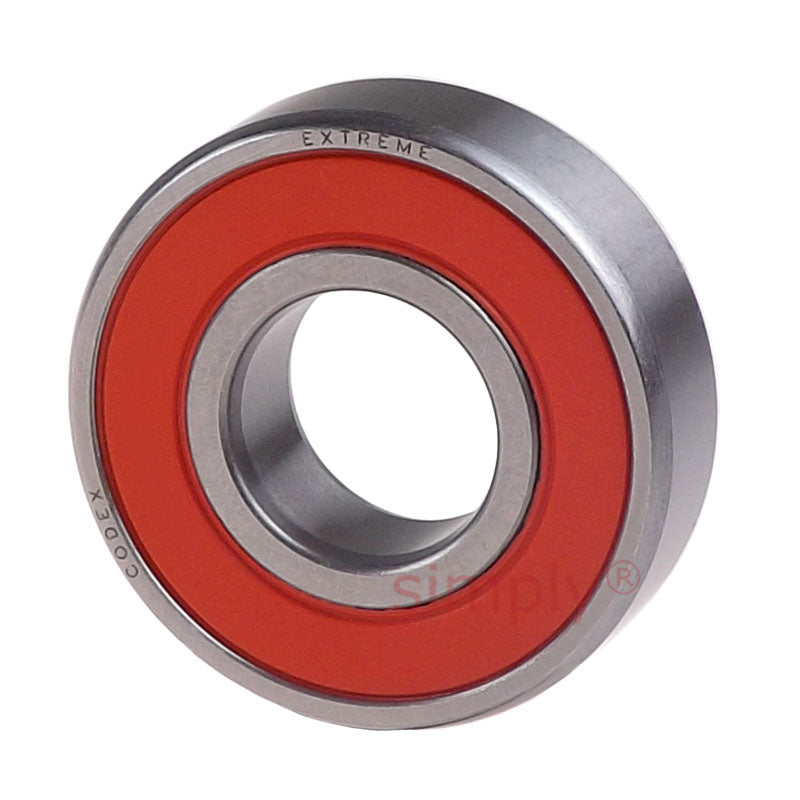

Codex 63092RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 45x100x25mm

Name: Codex 63092RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
Brand: Codex
SKU: 6309-2RS/C3-EMQ-CDX
Price: 39.73 USD
Availability: InStock

$39.73 ex VAT

Sale Sold out

Equivalent to: 6309-2RS/C3

In stock

Price Break

4+ $26.61

10+ $25.11

20+ $24.81

30+ $24.51

50+ $24.22

75+ $23.92

100+ $22.42

200+ $22.12

250+ $21.82

500+ $21.53

1000+ $20.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 45mm
Outside Diameter:: 100mm
Width:: 25mm
Seals / Shields:: Rubber Sealed
Clearance:: C3

Technical

d	45mm
D	100mm
B	25mm
Dynamic load C	55.3 kN
Static load Co	31.5 kN
Fatigue load limit Pu	1.34
Reference speed	15000 rpm
Limiting speed	4500 rpm
Weight	0.83 kg
d1	62.2mm
D2	86.7mm
r1r2	1.5mm
da min	54mm
Da max	91mm
ra max	1.5mm
Calc factor kr	0.03
Calc factor Cor f0	13
