SKU: 6309-2Z-HT-330

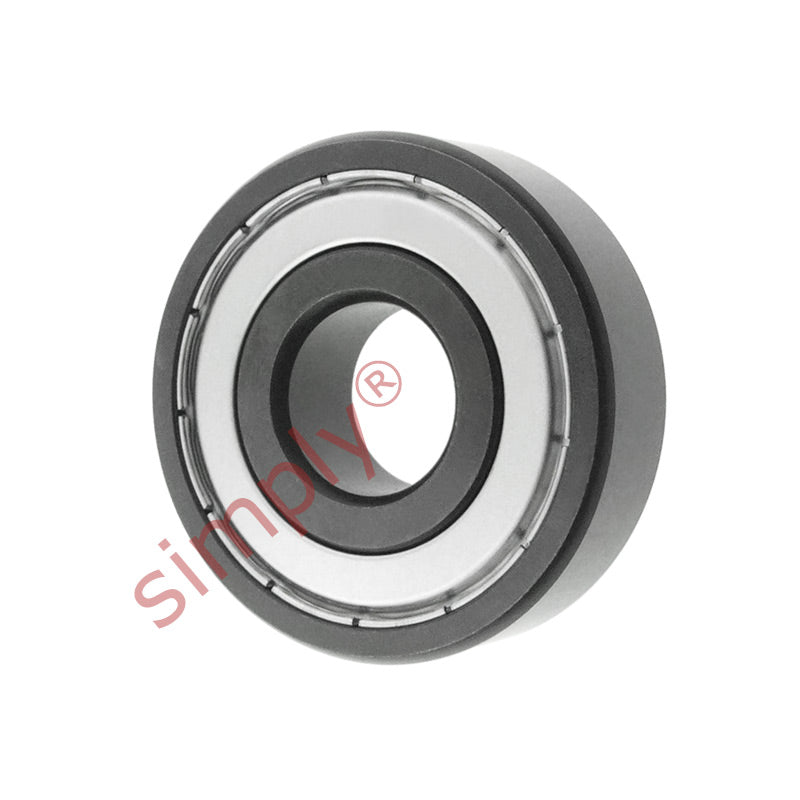

6309ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 45x100x25mm Max 75rpm
- Regular price
- $41.04 ex VAT
- Sale price
- $41.04
- Regular price
-
In stock
Quantity Price Breaks
3
$36.53
5
$34.47
10
$34.06
15
$33.65
20
$33.24
30
$32.83
40
$30.78
50
$30.37
60
$29.96
75
$29.55
100
$28.73
SKU:
6309-2Z-HT-330
6309ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 45x100x25mm Max 75rpm
- Regular price
- $41.04 ex VAT
- Sale price
- $41.04
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 45mm |
| Outside diameter D | = | 100mm |
| Width W | = | 25mm |
| Static load max | = | 18.5 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 75 rpm |
| Weight | = | 830 g |
