SKU: 6309-CDX

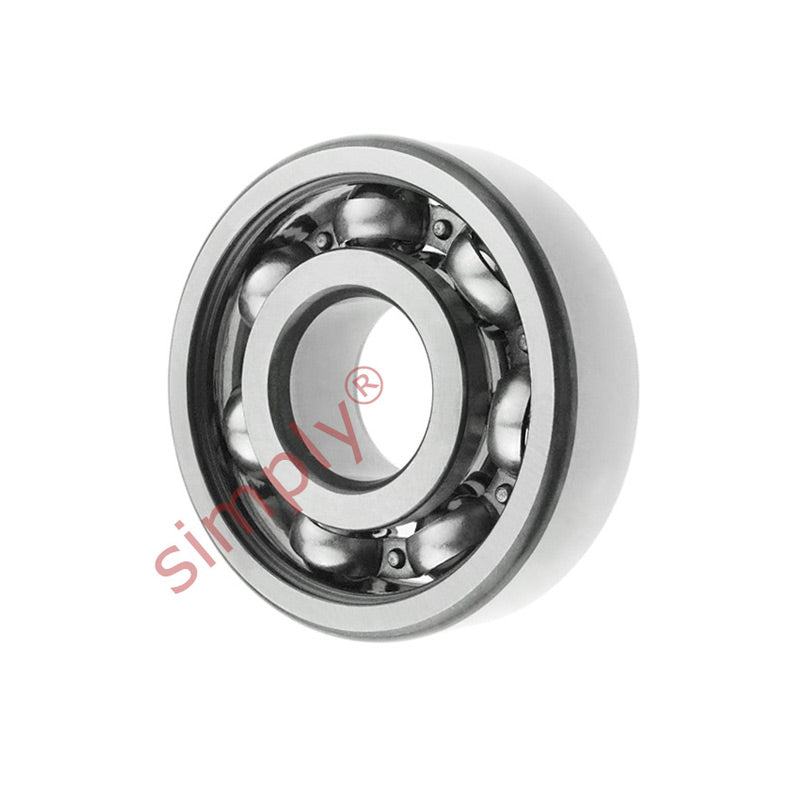

Codex 6309 Open Deep Groove Ball Bearing 45x100x25mm

Codex 6309 Open Deep Groove Ball Bearing 45x100x25mm
$24.82 ex VAT
$24.82 ex VAT
Sale Sold out

Equivalent to: 6309 1309 309 309K 309S 3309

In stock

Price Break
4+ $16.62
10+ $15.69
20+ $15.50
30+ $15.31
50+ $15.13
75+ $14.94
100+ $14.01
200+ $13.82
250+ $13.63
500+ $13.45
1000+ $13.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
Codex - Good Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 45mm
D 100mm
B 25mm
Dynamic Load 55.3 kN
Static Load 31.5 kN
Fatigue load limit Pu 1.34
Reference Speed 15000 rpm
Limiting Speed 9500 rpm
Weight 0.83kg
d1 62.2mm
D1 82.7mm
D2 86.7mm
r1r2 min 1.5mm
da min 54mm
Da max 91mm
ra max 1.5mm
Calc Factor kr 0.03
Calc Factor Cor f0 13
