• NTN 6309 Open Type Deep Groove Ball Bearing 45x100x25mm
  • NTN
1 2

SKU: 6309-NTN

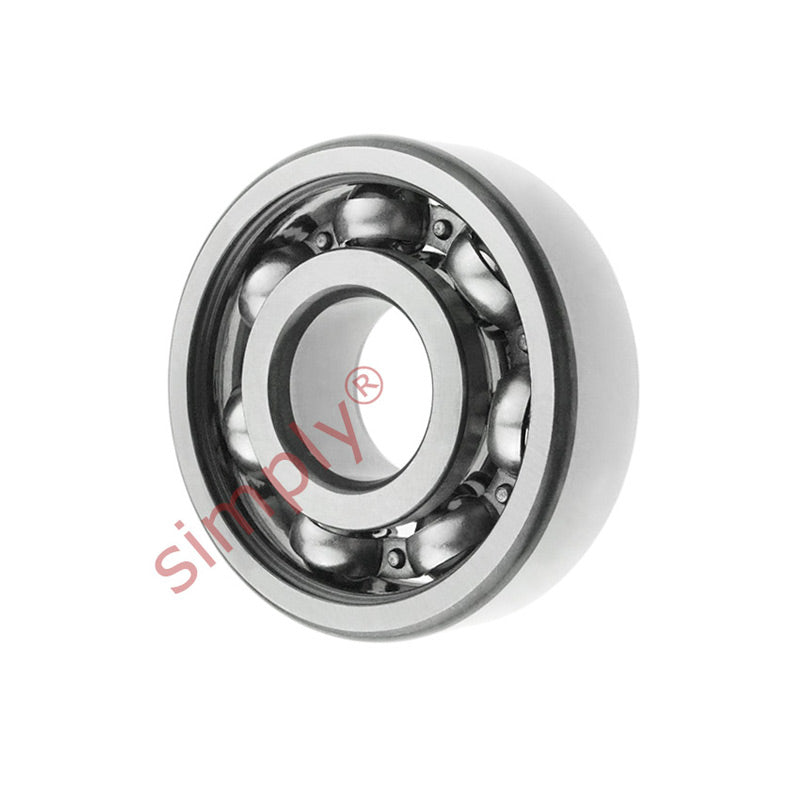

NTN 6309 Open Type Deep Groove Ball Bearing 45x100x25mm

NTN 6309 Open Type Deep Groove Ball Bearing 45x100x25mm
$41.80 ex VAT
$41.80 ex VAT
Sale Sold out

Equivalent to: 6309CM 309K 1309 309KS 6309 3309 10B

In stock

Price Break
3+ $28.00
5+ $26.43
10+ $26.11
25+ $25.80
49+ $25.48
74+ $25.17
99+ $23.60
199+ $23.28
249+ $22.97
499+ $22.65
999+ $22.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 45mm
D 100mm
B 25mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
C<sub>r</sub> 58.5 kN
C<sub>or</sub> 32 kN
C<sub>u</sub> 2.5 kN
f<sub>0</sub> 13.1 kN
Grease 7000 rpm
Oil 8200 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 53mm
D<sub>a</sub> Max. 92mm
r<sub>as</sub> Max. 1.5mm
Weight 0.814 kg
