SKU: 6309/VA201-SKF

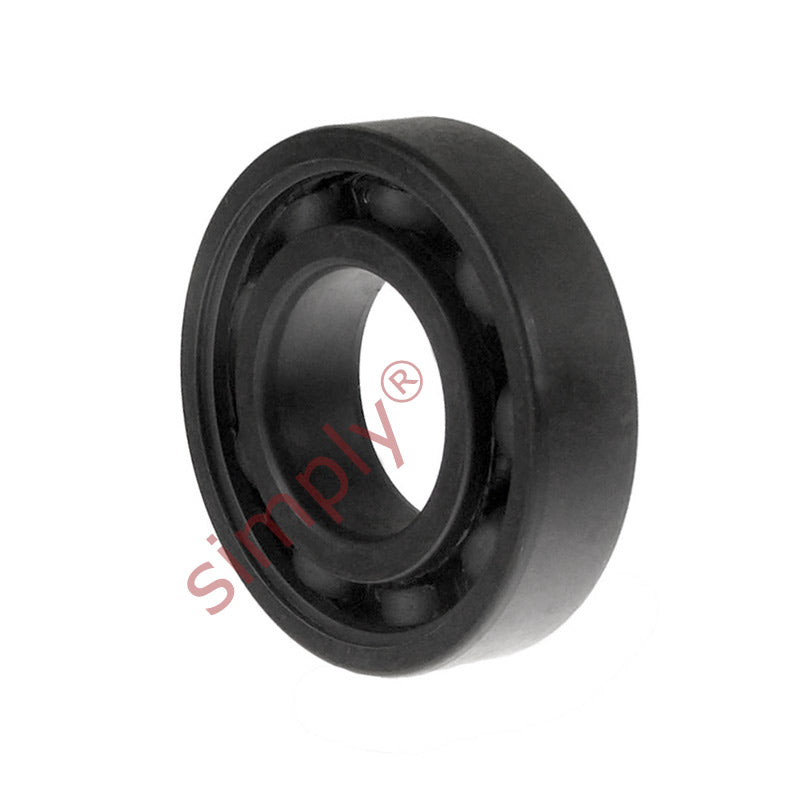

SKF 6309VA201 Single Row Deep Groove Ball Bearing High Temperature Type 45x100x25mm

Name: SKF 6309VA201 Single Row Deep Groove Ball Bearing High Temperature Type 45x100x25mm
Brand: SKF
SKU: 6309/VA201-SKF
Price: 102.38 USD
Availability: InStock

$102.38 ex VAT

Sale Sold out

In stock

Price Break

10+ $68.58

19+ $64.73

29+ $63.95

39+ $63.18

49+ $62.41

74+ $61.64

99+ $57.79

199+ $57.02

249+ $56.25

499+ $55.48

999+ $53.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 100mm
Width:: 25mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	45mm
D	100mm
B	25mm
d1	62.1mm
D2	86.7mm
r1r2	1.5mm
Basic load rating Co	31.5 kN
Weight	0.83 kg
Max operating temp	+250 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
