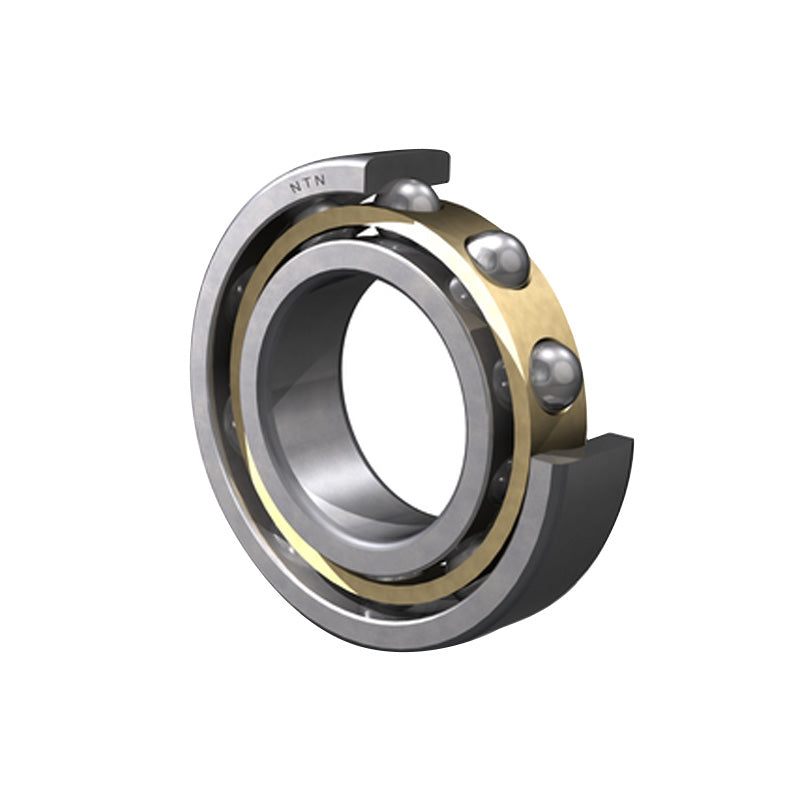

• NTN 6309L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 45x100x25mm
1 1

SKU: 6309L1C3-NTN

NTN 6309L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 45x100x25mm

NTN 6309L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 45x100x25mm
$90.87 ex VAT
$90.87 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
None
Clearance:
C3
Technical
--- Bearing dimensions
d 45mm
D 100mm
B 25mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
C<sub>r</sub> 58.5 Kn
C<sub>or</sub> 32 kN
C<sub>u</sub> 2.5 kN
f<sub>0</sub> 13.1 kN
Grease 7000 rpm
Oil 8200 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 53mm
D<sub>a</sub> Max. 92mm
r<sub>as</sub> Max. 1.5mm
Weight 0.814 kg
