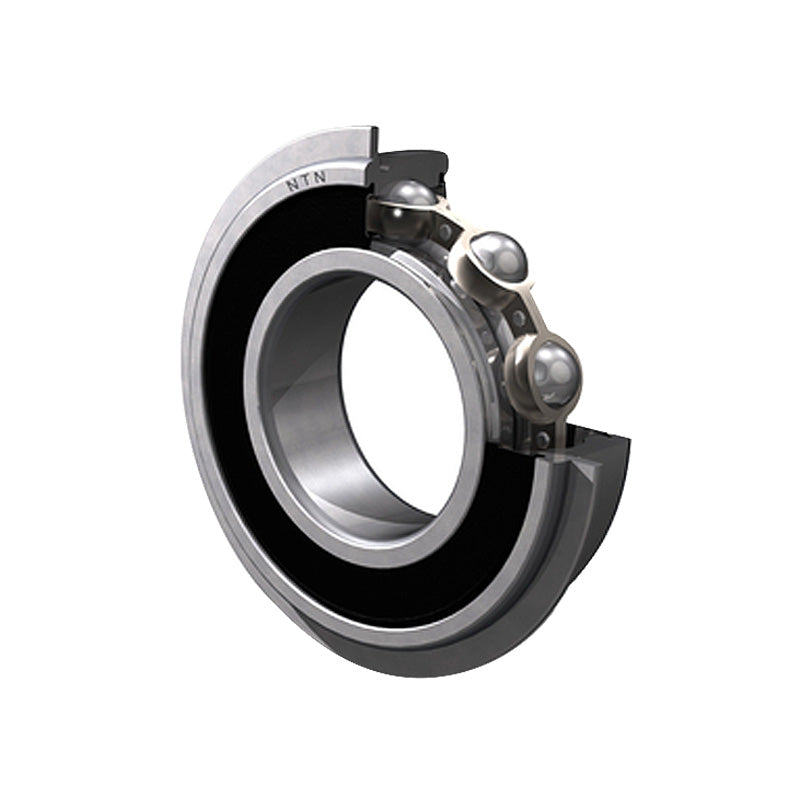

• NTN 6309LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 45x100x25mm
1 1

SKU: 6309LLBNR/2AS-NTN

NTN 6309LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 45x100x25mm

NTN 6309LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 45x100x25mm
$52.76 ex VAT
$52.76 ex VAT
Sale Sold out

Equivalent to: 6309LLBNRCM 6309LLBNR 63092NKENR 6309VVNR 63092RSLNR 63092RZNR

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_RSWT
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 45mm
D 100mm
B 25mm
r<sub>s</sub> min 1.5
--- Loads angles and speeds
rNS Min. 0.5
C<sub>r</sub> 58.5 kN
C<sub>or</sub> 32 kN
C<sub>u</sub> 2.5 kN
f<sub>0</sub> 13.1
Grease 7000 rpm
--- Fitting Dimensions
Oil 8200 rpm
D<sub>1</sub> Max. 96.8mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
