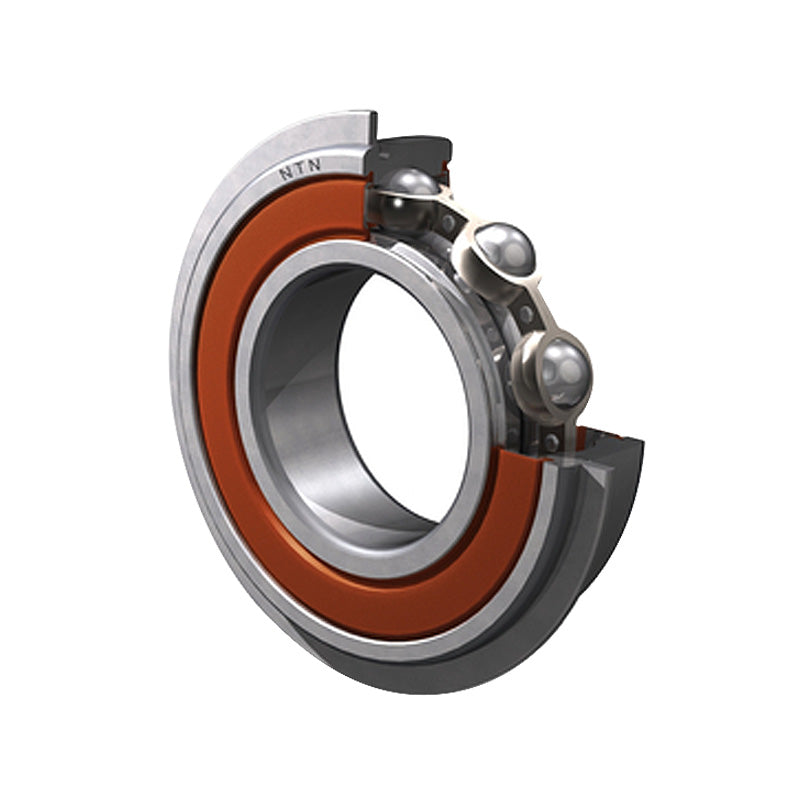

• NTN 6309LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
1 1

SKU: 6309LLUNR/2AS-NTN

NTN 6309LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm

NTN 6309LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
$114.44 ex VAT
$114.44 ex VAT
Sale Sold out

Equivalent to: 6309LLUNRCM 6309LLUNR 6309NSENR 6309DUNR 6309RSNR 6309RSHNR 6309PNR 6309RSRNR 6309LUNR 63092NSENR 6309DDUNR 63092RSNR 6309-2RSNR 63092RS1NR 63092RSHNR 6309PPNR 63092RSRNR 6309LLUNR 6309RS2NR 63092RS2NR 63092RSLNR 6309LFSNR 6309EENR 309SZZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 45mm
D 100mm
B 25mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 58.5 kN
C<sub>or</sub> 32 kN
C<sub>u</sub> 2.5 kN
f<sub>0</sub> 13.1
--- Fitting Dimensions
Speed 4700rpm
D<sub>1</sub> Max. 96.8mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
