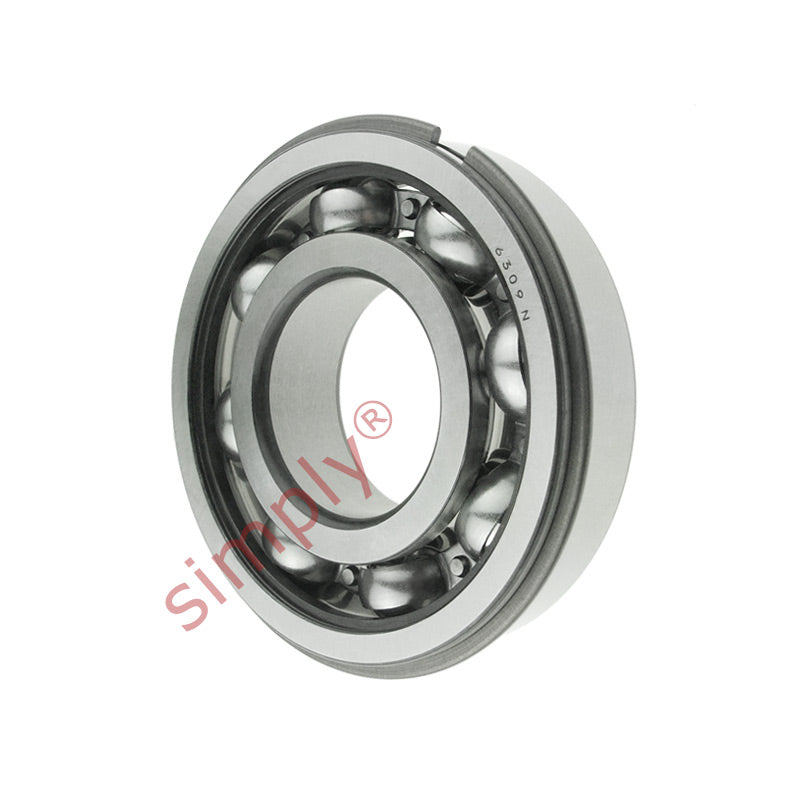

• 6309NR Deep Groove Ball Bearing with Snap Ring 45x100x25mm
1 1

SKU: 6309NR-MB

6309NR Deep Groove Ball Bearing with Snap Ring 45x100x25mm

6309NR Deep Groove Ball Bearing with Snap Ring 45x100x25mm
$76.57 ex VAT
$76.57 ex VAT
Sale Sold out

In stock

Price Break
10+ $51.29
19+ $48.41
29+ $47.83
39+ $47.26
49+ $46.68
74+ $46.10
99+ $43.22
199+ $42.65
249+ $42.07
499+ $41.49
999+ $40.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 45mm
D 100mm
B 25mm
Dyamic load C 55.3 kN
Static load Co 31.5 kN
Fatigue load limit Pu 1.34 kN
Reference speed 15000 rpm
Limiting speed 9500 rpm
Mass 0.83 kg
d1 62.2mm
d2 82.7mm
D2 86.7mm
r1r2 min 1.5mm
da min 54
