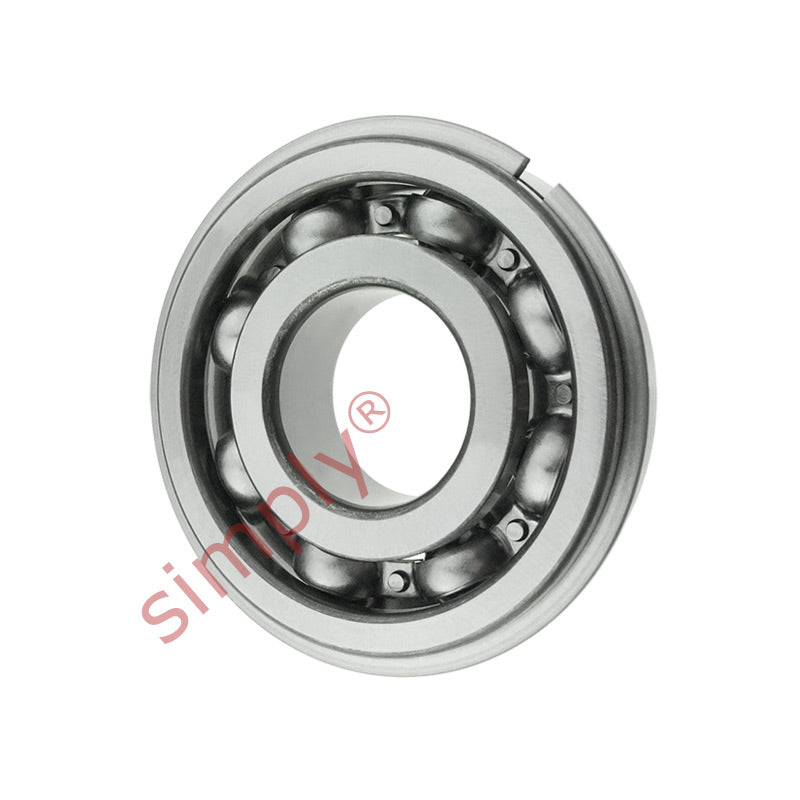

• NSK 6309NR Open Type Deep Groove Ball Bearing With Snap Ring 45x100x25mm
  • NSK
1 2

SKU: 6309NR-NSK

NSK 6309NR Open Type Deep Groove Ball Bearing With Snap Ring 45x100x25mm

NSK 6309NR Open Type Deep Groove Ball Bearing With Snap Ring 45x100x25mm
$81.70 ex VAT
$81.70 ex VAT
Sale Sold out

In stock

Price Break
4+ $54.72
10+ $51.65
20+ $51.03
30+ $50.42
50+ $49.80
75+ $49.19
100+ $46.11
200+ $45.50
250+ $44.88
500+ $44.27
1000+ $43.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NSK - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
d 45mm
D 100mm
B 25mm
r min 1.5mm
Dynamic load Cr 53000 N (5400 kgf)
Static load Cor 32000 N (3250 kgf)
Factor 13.1
Speed in grease 6700 rpm
Speed in oil 8000 rpm
a max 3.28mm
b min 2.7mm
D1 max 96.8mm
ro max 0.6mm
rN min 0.5mm
D2 max 106.5mm
f max 2.46mm
da2 min 53mm
da2max 61.5mm
Da2max 92mm
ra max 1.5mm
Dx min 108mm
Cy max 5.4mm
Weight 0.829 kg
