• NTN 6309NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
  • NTN
1 2

SKU: 6309NRC3-NTN

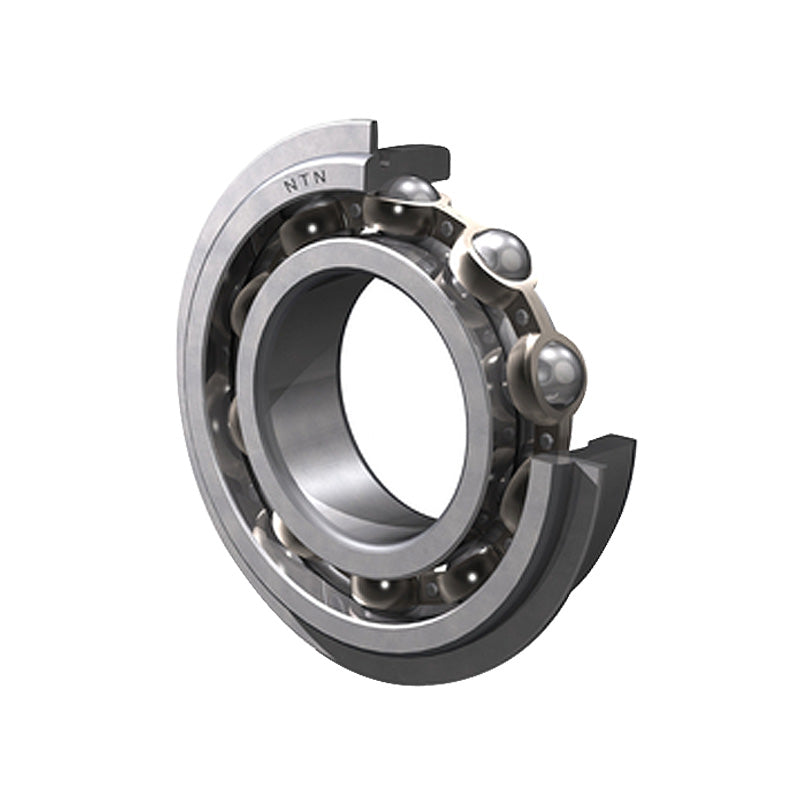

NTN 6309NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm

NTN 6309NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
$105.07 ex VAT
$105.07 ex VAT
Sale Sold out

Equivalent to: 309KGC3 309SGC3 43309C3

In stock

Price Break
3+ $70.38
5+ $66.43
10+ $65.64
25+ $64.85
49+ $64.05
74+ $63.26
99+ $59.31
199+ $58.52
249+ $57.73
499+ $56.94
999+ $55.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
None
Clearance:
C3
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 45mm
D 100mm
B 25mm
r<sub>s</sub> min 1.5mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 58.5 kN
C<sub>or</sub> 32 kN
C<sub>u</sub> 2.5 kN
f<sub>0</sub> 13.1 kN
Grease 7000 rpm
Oil 8200 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 96.8mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 106.5mm
f Max. 2.46mm
--- Fitting Dimensions
d<sub>a</sub> Min. 53mm
d<sub>a</sub> Max. 61.5mm
D<sub>a</sub> Max. 92mm
D<sub>X</sub> (approx) 108mm
C<sub>Y</sub> Max. 5.4mm
C<sub>Z</sub> Min. 2.5mm
r<sub>as</sub> Max. 1.5mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.814 kg
