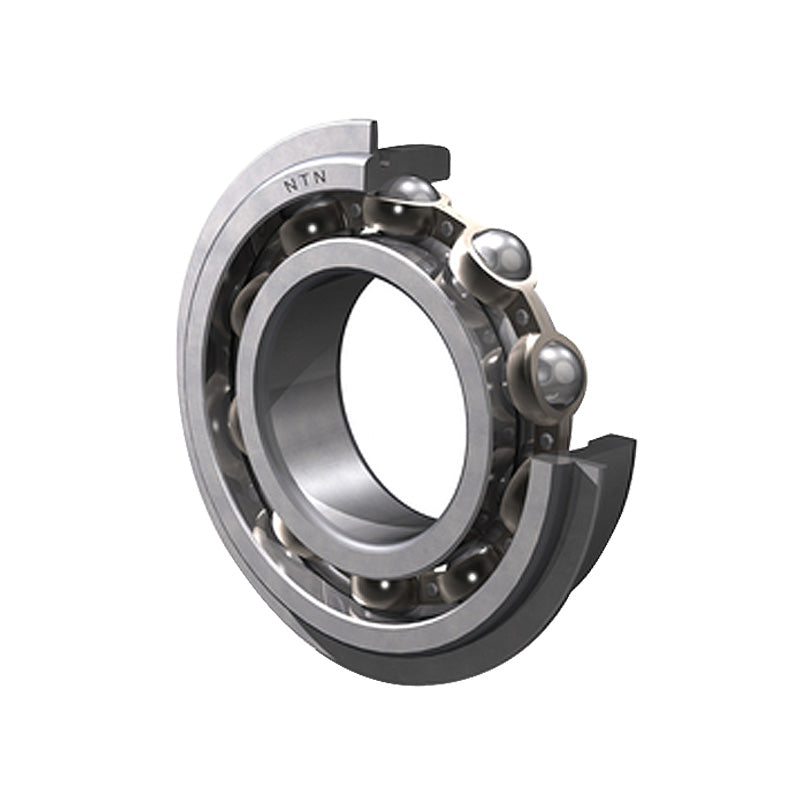

• NTN 6309ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
1 1

SKU: 6309ZNR-NTN

NTN 6309ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm

NTN 6309ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
$103.72 ex VAT
$103.72 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

This bearing has one sided metal shielded and one open side.

HEAD_SKZN
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
25mm
Seals / Shields:
Open and Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 45mm
D 100mm
B 25mm
r<sub>s</sub> min 1.5mm
rNS Min. 0.5
--- Loads angles and speeds
C<sub>r</sub> 58.5 Kn
C<sub>or</sub> 32 kN
C<sub>u</sub> 2.5 kN
f<sub>0</sub> 13.1 kN
Grease 7000 rpm
Oil 8200 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 96.8
a Max. 3.28
b Min. 2.7
r<sub>o</sub> Max. 0.6
D<sub>2</sub> Max. 106.5
f Max. 2.46
--- Fitting Dimensions
d<sub>a</sub> Min. 53mm
d<sub>a</sub> Max. 61.5mm
D<sub>a</sub> Max. 92mm
D<sub>X</sub> (approx) 108
C<sub>Y</sub> Max. 5.4
C<sub>Z</sub> Min. 2.5
r<sub>as</sub> Max. 1.5mm
r<sub>Nas</sub> Max. 0.5
Weight 0.814 kg
