SKU: 6309ZZNR-NSK

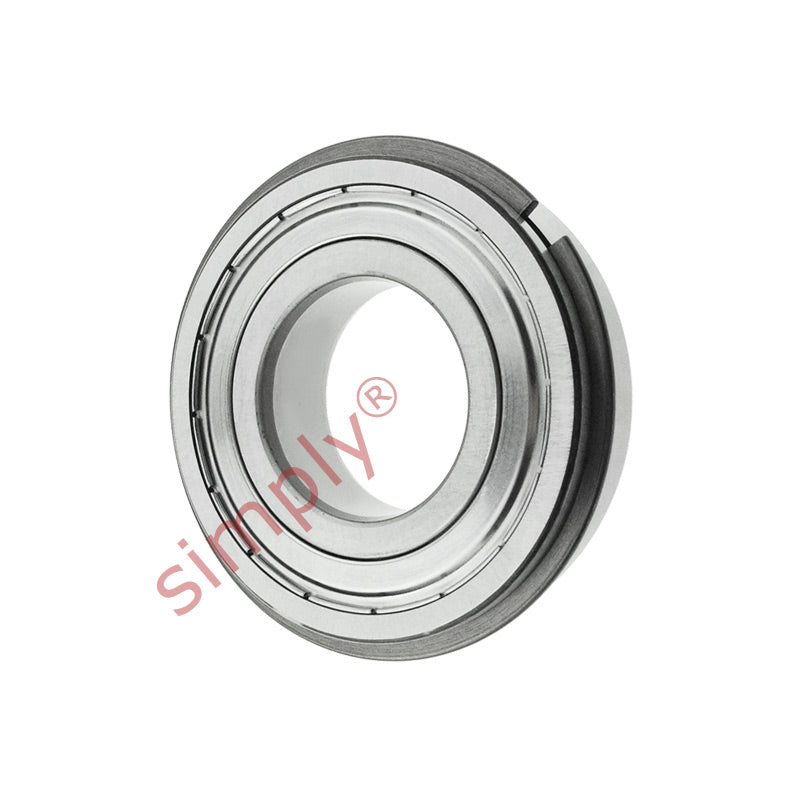

NSK 6309ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 45x100x25mm

Name: NSK 6309ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 45x100x25mm
Brand: NSK
SKU: 6309ZZNR-NSK
Price: 120.46 USD
Availability: InStock

$120.46 ex VAT

Sale Sold out

Equivalent to: 63092ZNR

In stock

Price Break

4+ $80.69

10+ $76.15

20+ $75.25

30+ $74.34

50+ $73.43

75+ $72.53

100+ $67.99

200+ $67.09

250+ $66.18

500+ $65.27

1000+ $63.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 100mm
Width:: 25mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	45mm
D	100mm
B	25mm
r min	1.5mm
Dynamic load Cr	53000 N (5400 kgf)
Static load Cor	32000 N (3250 kgf)
Factor	13.1
Speed in grease	6700 rpm
Speed in oil	8000 rpm
a max	3.28mm
b min	2.7mm
D1 max	96.8mm
ro max	0.6mm
rN min	0.5mm
D2 max	106.5mm
f max	2.46mm
da2 min	53mm
da2max	61.5mm
Da2max	92mm
ra max	1.5mm
Dx min	108mm
Cy max	5.4mm
Weight	0.829 kg
