• 630X2SPA 630mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
  • 630X2SPA 630mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
1 2

SKU: 630SPA2-MB

630X2SPA 630mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)

630X2SPA 630mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
$254.13 ex VAT
$254.13 ex VAT
Sale Sold out

In stock

Price Break
3+ $170.22
5+ $160.66
9+ $158.75
19+ $156.83
49+ $154.92
74+ $153.01
99+ $143.44
199+ $141.53
249+ $139.62
499+ $137.71
999+ $133.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
2
Outside Diameter:
636.2mm
Pitch Diameter:
630mm
Max Bore:
75mm

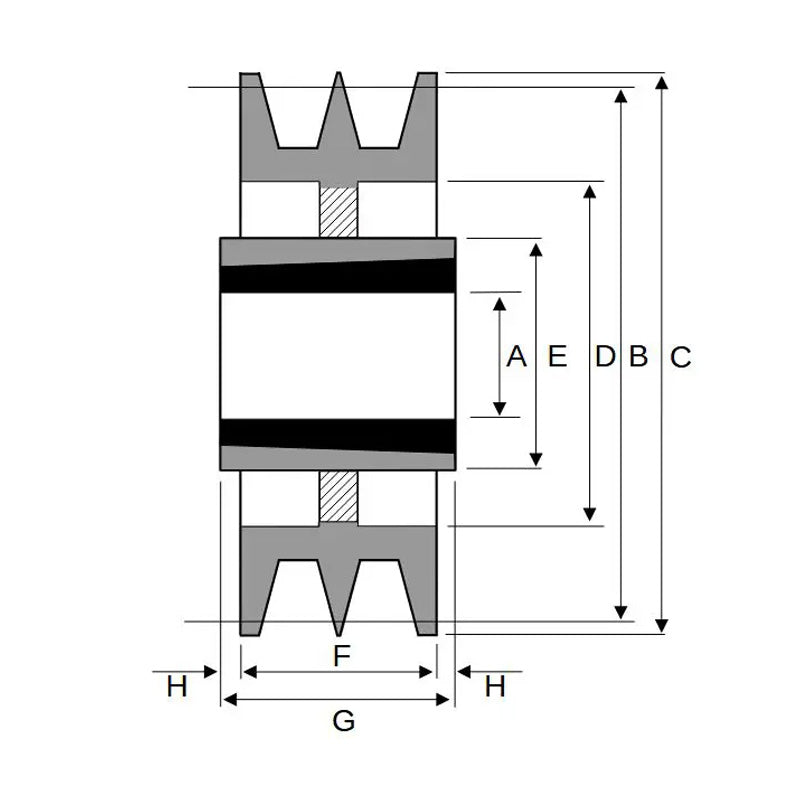

Technical
Number of Grooves 2
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 630mm
Overall Outer Diameter C 636.2mm
Max Bore A 75mm
Outer Hub Diameter E 159mm
Overall Sheave Depth F 35mm
Bush Seat Length G 51mm
Inner Recess Diameter D 595mm
Inner Recess Length H 8mm
