SKU: 630SPA3-MB

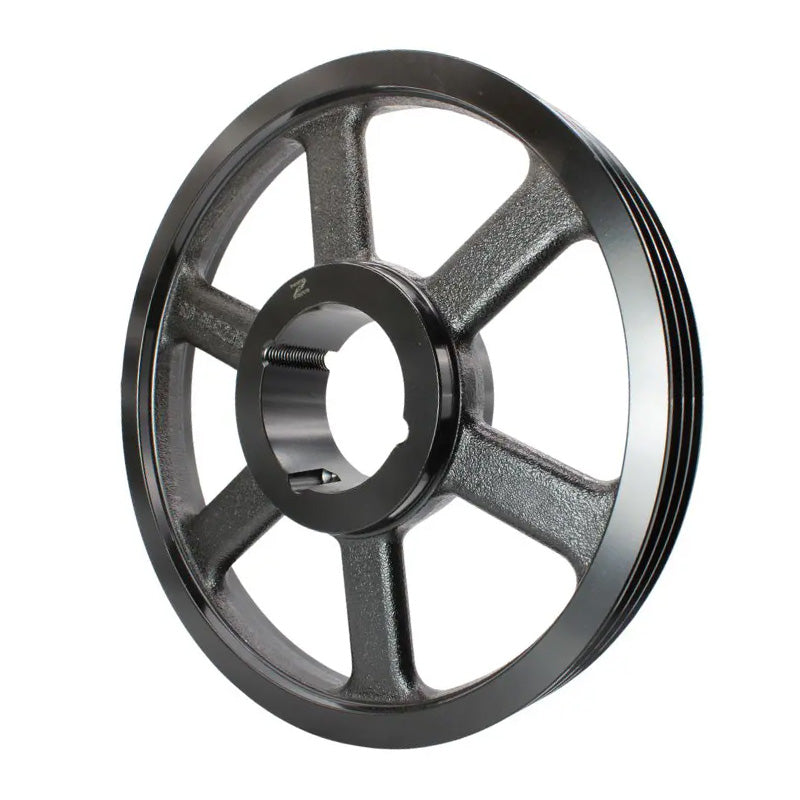

630X3SPA 630mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

630X3SPA 630mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$202.69 ex VAT
$202.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $135.77
5+ $128.14
9+ $126.62
19+ $125.09
49+ $123.57
74+ $122.04
99+ $114.41
199+ $112.89
249+ $111.36
499+ $109.84
999+ $106.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
636.2mm
Pitch Diameter:
630mm
Max Bore:
75mm
Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 630mm
Overall Outer Diameter C 636.2mm
Max Bore A 75mm
Outer Hub Diameter E 159mm
Overall Sheave Depth F 50mm
Bush Seat Length G 51mm
Inner Recess Diameter D 595mm
Inner Recess Length H 0mm
