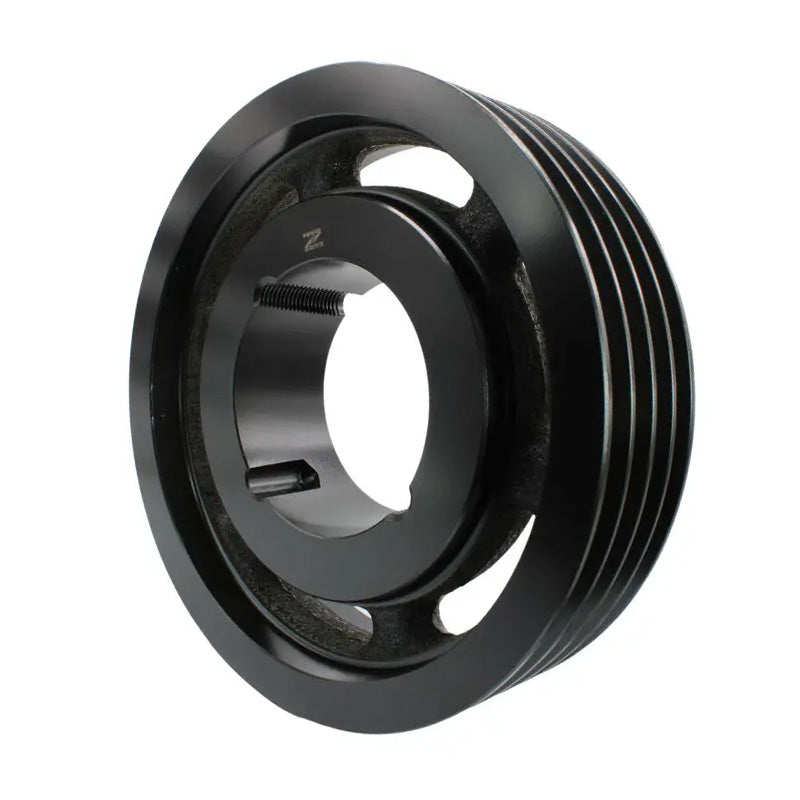

• 630X4SPB 630mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 630X4SPB 630mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 630SPB4-MB

630X4SPB 630mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

630X4SPB 630mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$328.64 ex VAT
$328.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $220.13
5+ $207.76
9+ $205.29
19+ $202.82
49+ $200.34
74+ $197.87
99+ $185.50
199+ $183.03
249+ $180.56
499+ $178.08
999+ $173.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SPB Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184.
Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better.
Pulleys with a weight of 100kg and above are dynamically balanced (two planes).
All pulleys with a weight less than 100kg are statically machine balanced (one plane).
Suitability: Suitable for use with B section, BX Section, SPB, XPB and 5V section V-Belts
Benefits: Cost effective replacement
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
637.6mm
Pitch Diameter:
630mm
Max Bore:
100mm
Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 630mm
Overall Outer Diameter C 637.6mm
Max Bore A 100mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 82mm
Bush Seat Length G 65mm
Inner Recess Diameter D 587mm
Inner Recess Length H 7mm
