• 630X8SPB 630mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
  • 630X8SPB 630mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
1 2

SKU: 630SPB8-MB

630X8SPB 630mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)

630X8SPB 630mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
$612.05 ex VAT
$612.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $409.97
5+ $386.94
9+ $382.33
19+ $377.72
49+ $373.12
74+ $368.51
99+ $345.48
199+ $340.87
249+ $336.27
499+ $331.66
999+ $322.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
8
Outside Diameter:
637mm
Pitch Diameter:
630mm
Max Bore:
110mm

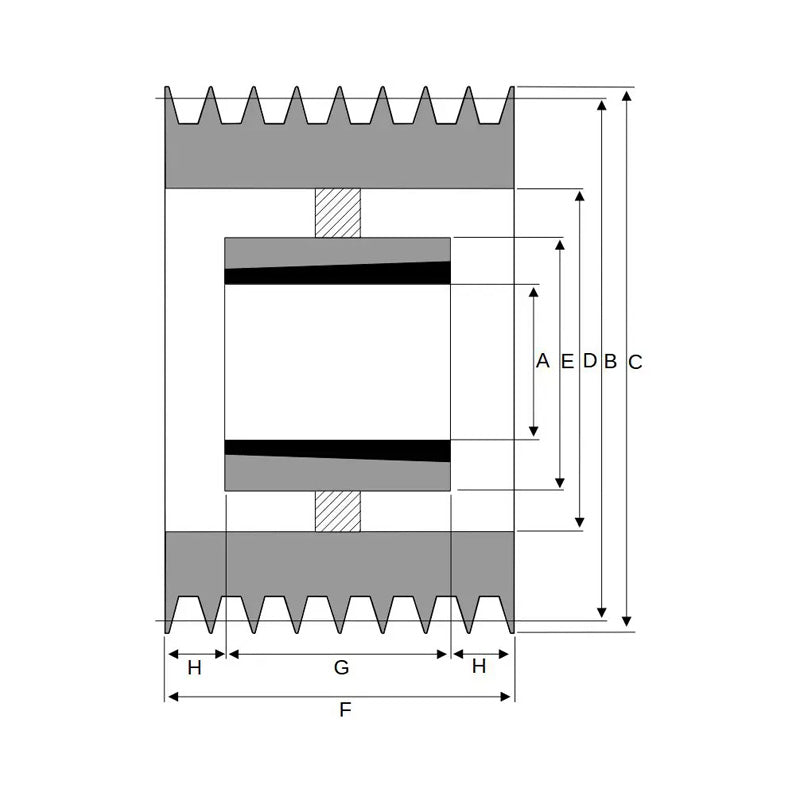

Technical
Number of Grooves 8
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=4545+tapered+locking+bush">4545 Click Here</a>
Pitch Diameter B 630mm
Overall Outer Diameter C 637mm
Max Bore A 110mm
Overall Sheave Depth F 158mm
Bush Seat Length G 114mm
Inner Recess Length H 22mm
