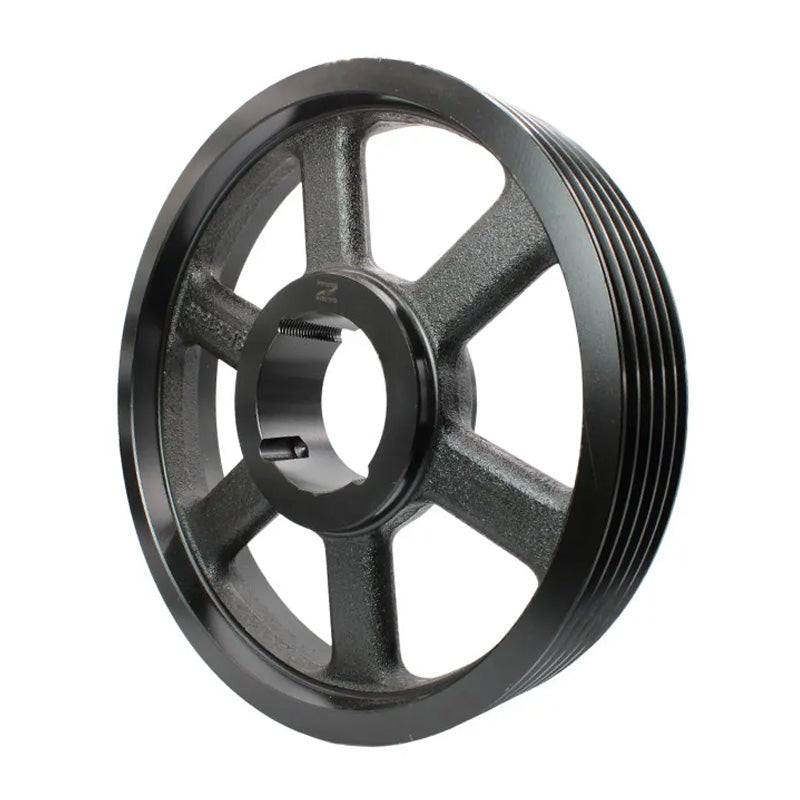

• 630X5SPZ 630mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 630SPZ5-MB

630X5SPZ 630mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

630X5SPZ 630mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$226.74 ex VAT
$226.74 ex VAT
Sale Sold out

In stock

Price Break
3+ $151.88
5+ $143.35
9+ $141.64
19+ $139.94
49+ $138.23
74+ $136.52
99+ $127.99
199+ $126.28
249+ $124.58
499+ $122.87
999+ $119.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
634mm
Pitch Diameter:
630mm
Max Bore:
75mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3030+tapered+locking+bush">3030 Click Here</a>
Pitch Diameter B 630mm
Overall Outer Diameter C 634mm
Max Bore A 75mm
Overall Sheave Depth F 64mm
Bush Seat Length G 77mm
Inner Recess Length H 6.5mm
