SKU: 6310-2Z/C3-KOY

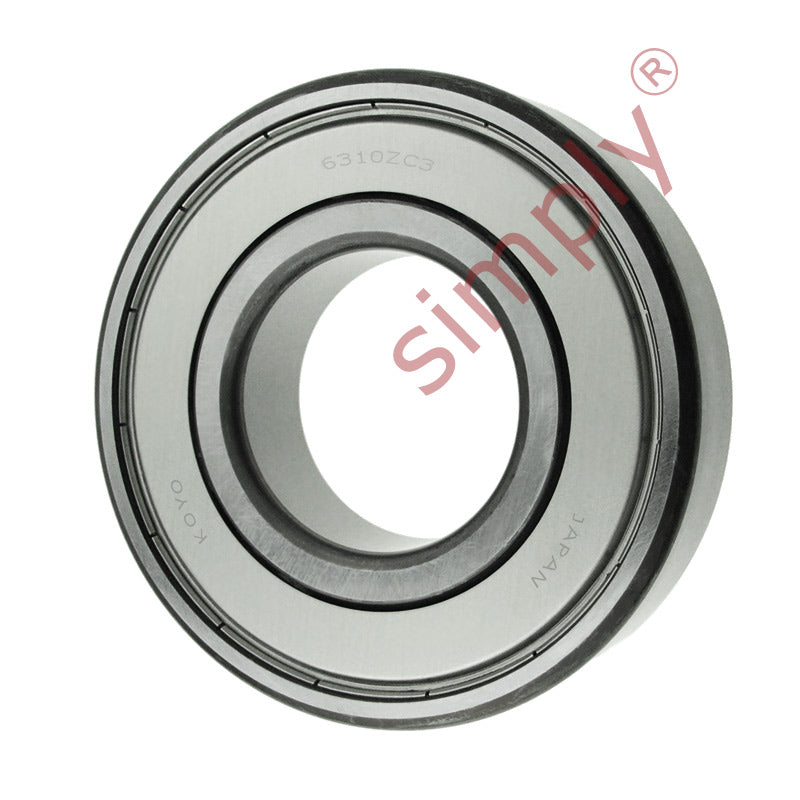

KOYO 63102ZC3 Metal Shielded Deep Groove Ball Bearing 50x110x27mm
Equivalent to: 6310ZZEC3 6310ZZC3 6310.2ZC3 6310KDDC3 6310DDC3 63102ZRC3 6310FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 110mm |
| Width B | 27mm |
| Min radius r | 2mm |
| Dynamic load | 62 kN |
| Static load | 38.3 kN |
| Max speed in oil | 7300 rpm |
| Max speed in grease | 4100 rpm |
