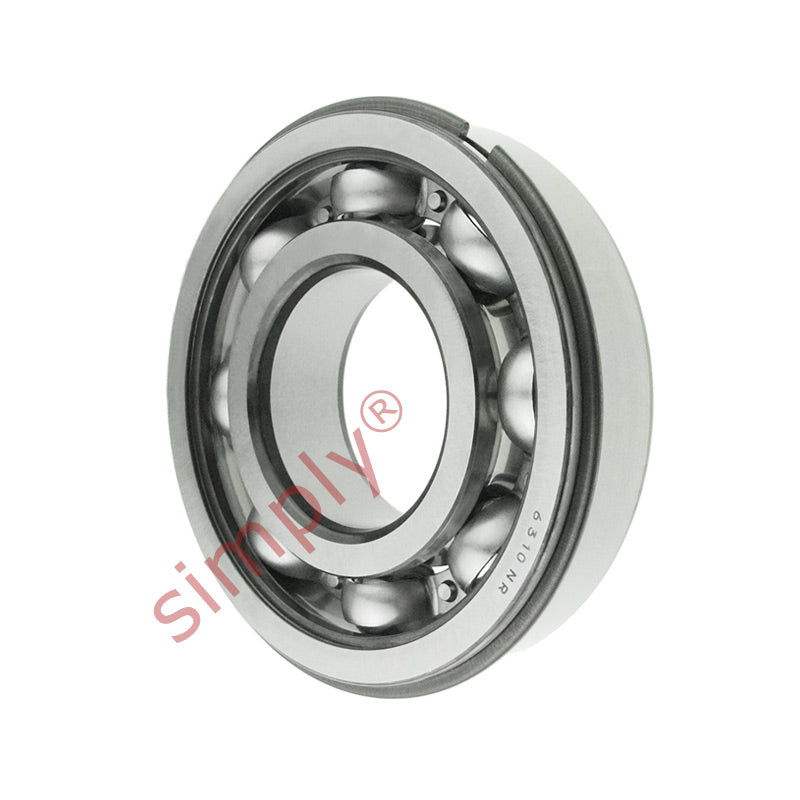

• 6310NR Deep Groove Ball Bearing with Snap Ring 50x110x27mm
1 1

SKU: 6310NR-MB

6310NR Deep Groove Ball Bearing with Snap Ring 50x110x27mm

6310NR Deep Groove Ball Bearing with Snap Ring 50x110x27mm
$99.11 ex VAT
$99.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $66.39
19+ $62.66
29+ $61.91
39+ $61.17
49+ $60.42
74+ $59.67
99+ $55.94
199+ $55.20
249+ $54.45
499+ $53.71
999+ $52.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
50mm
Outside Diameter:
110mm
Width:
27mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 50mm
D 110mm
B 27mm
Dyamic load C 65 kN
Static load Co 38 kN
Fatigue load limit Pu 1.6 kN
Reference speed 13000 rpm
Limiting speed 8500 rpm
Mass 1.05 kg
d1 68.8mm
d2 91.1mm
D2 95.2mm
r1r2 min 2mm
da min 61
