• NTN 6311 Open Type Deep Groove Ball Bearing 55x120x29mm
  • NTN 6311 Open Type Deep Groove Ball Bearing 55x120x29mm
  • NTN 6311 Open Type Deep Groove Ball Bearing 55x120x29mm
  • NTN
1 4

SKU: 6311-NTN

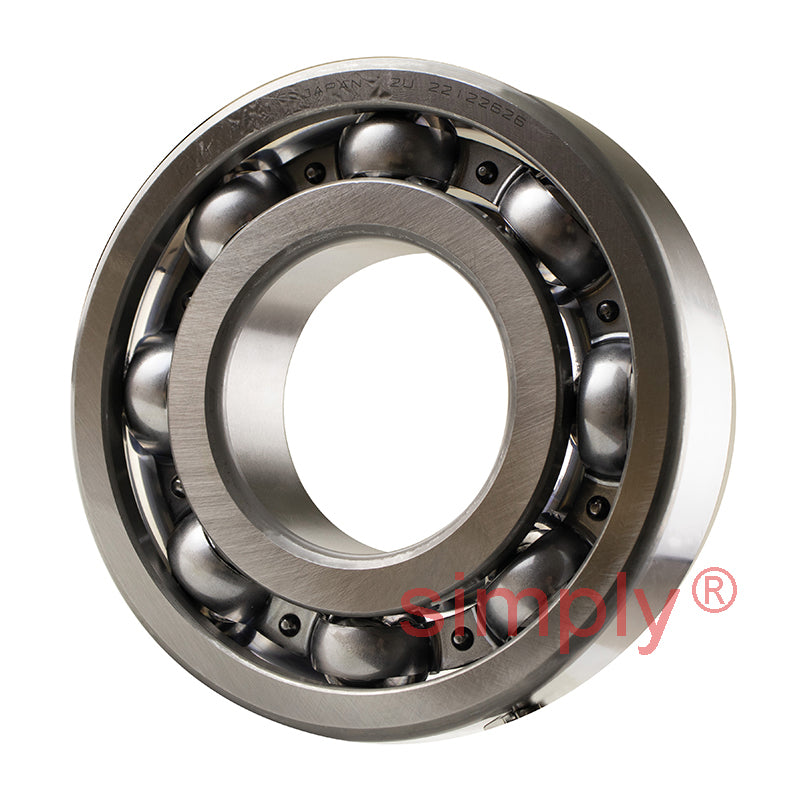

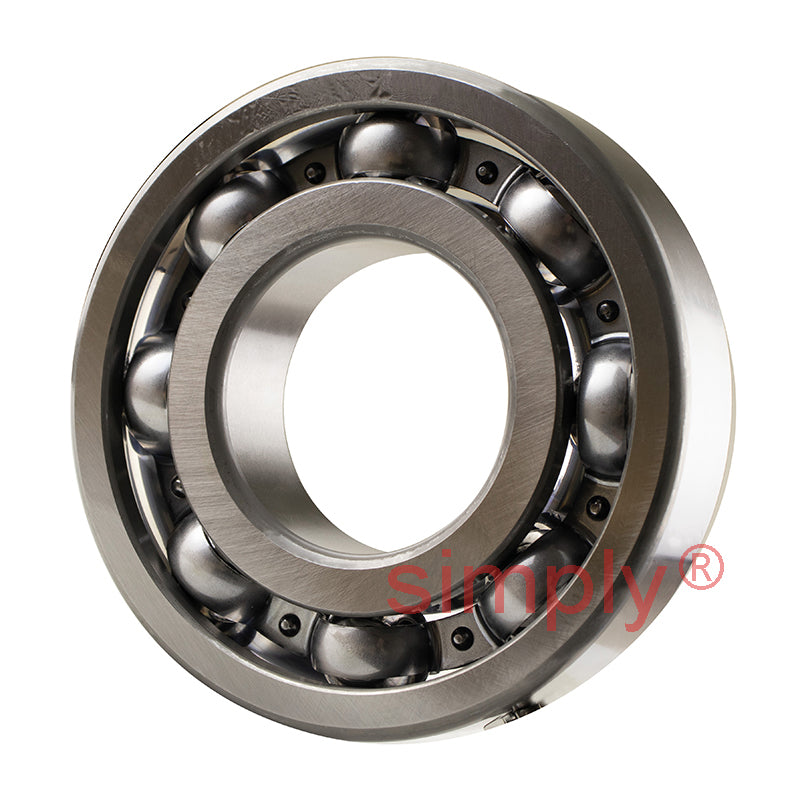

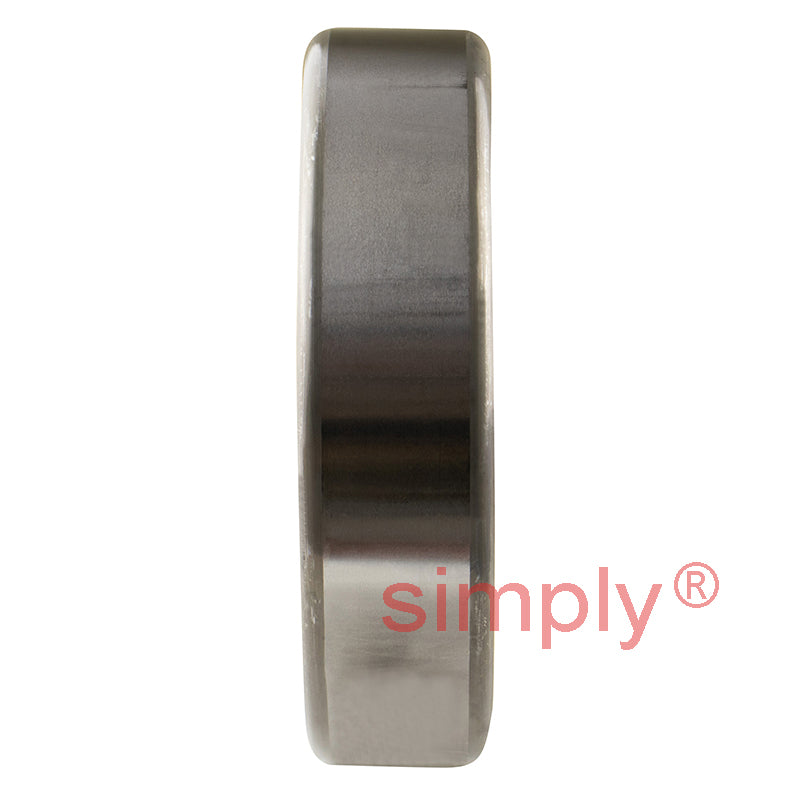

NTN 6311 Open Type Deep Groove Ball Bearing 55x120x29mm

NTN 6311 Open Type Deep Groove Ball Bearing 55x120x29mm
$69.62 ex VAT
$69.62 ex VAT
Sale Sold out

Equivalent to: 6311CM 311K 1311 311KS 6311 3311 12B

In stock

Price Break
3+ $46.64
5+ $44.02
10+ $43.49
25+ $42.97
49+ $42.44
74+ $41.92
99+ $39.30
199+ $38.78
249+ $38.25
499+ $37.73
999+ $36.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Outside Diameter:
120mm
Width:
29mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 55mm
D 120mm
B 29mm
r<sub>s</sub> min 2mm
--- Loads angles and speeds
C<sub>r</sub> 79.5 kN
C<sub>or</sub> 45 kN
C<sub>u</sub> 3.5 kN
f<sub>0</sub> 13.2 kN
Grease 5800 rpm
Oil 6800 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 64mm
D<sub>a</sub> Max. 111mm
r<sub>as</sub> Max. 2mm
Weight 1.37 kg
