SKU: 6311NR-SKF

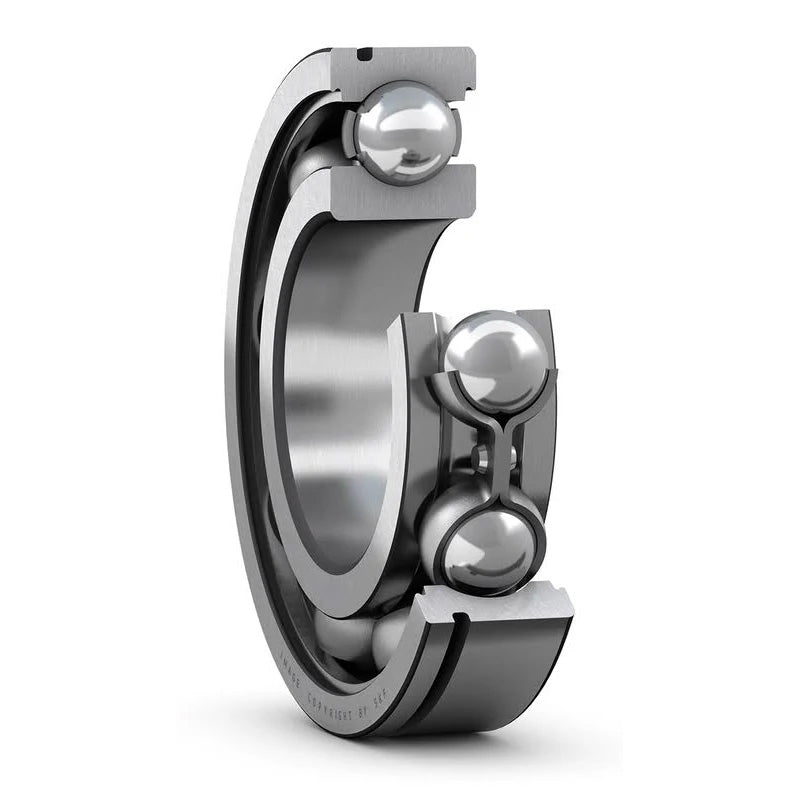

SKF 6311NR Open Type Snap Ring Deep Groove Bearing 55x120x29mm
SKF 6311NR Open Type Snap Ring Deep Groove Bearing 55x120x29mm
Regular price
$162.87
ex VAT
Regular price
Sale price
$162.87
ex VAT
In stock
Price Break
4+
$109.10
10+
$102.97
20+
$101.74
30+
$100.52
50+
$99.29
75+
$98.06
100+
$91.94
200+
$90.71
250+
$89.48
500+
$88.26
1000+
$85.81
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 74.1 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 1.35kg |
| Snap ring | SP 120 |
| d1 | 75.3mm |
| D2 | 104mm |
| D3 | 115.21mm |
| D4 | 129.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.06mm |
| r1r2 min | 2mm |
| ro max | 0.6mm |
| da min | 66mm |
| Da max | 109mm |
| Db min | 131mm |
| ba min | 3.5mm |
| Ca max | 6.88mm |
| ra max | 2mm |
| Calc Factor kr | 0.03 |
| fo | 13 |
