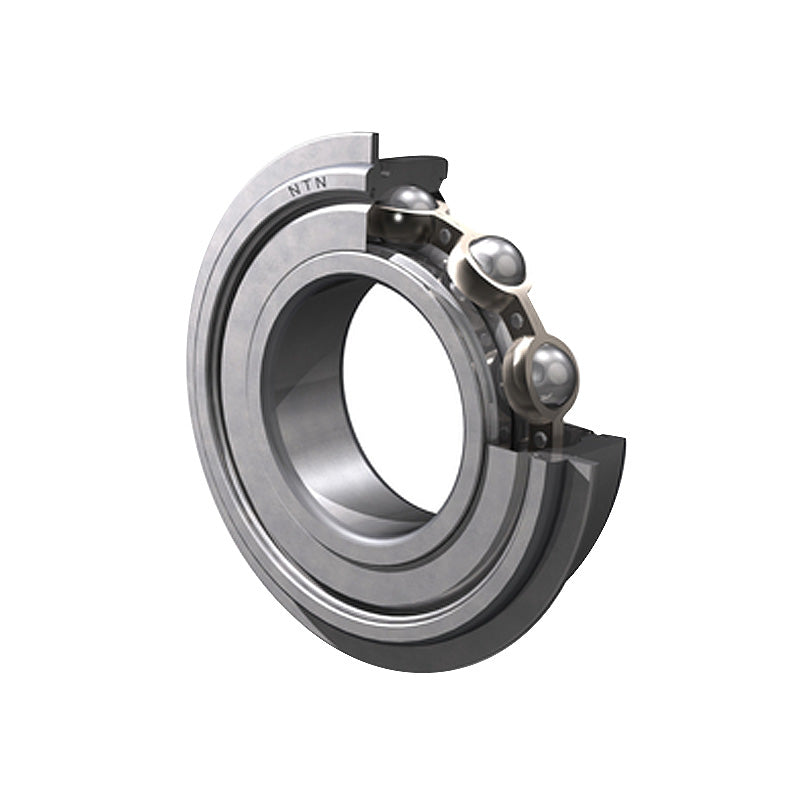

• NTN 6311ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x120x29mm
1 1

SKU: 6311ZZNR/2AS-NTN

NTN 6311ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x120x29mm

NTN 6311ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x120x29mm
$218.46 ex VAT
$218.46 ex VAT
Sale Sold out

Equivalent to: 6311ZZNRCM 6311ZZNR 6311ZZNR 63112ZNR 6311ZZNR 63112ZRNR 6311ZZENR 6311FFNR 6311DDNR 6311DDCNR 6311KDDCNR EL552ZNR EL55ZZNR 9111KDDG 4773L11 111KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Outside Diameter:
120mm
Width:
29mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 55mm
D 120mm
B 29mm
r<sub>s</sub> min 2mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 79.5 kN
C<sub>or</sub> 45 kN
C<sub>u</sub> 3.5 kN
f<sub>0</sub> 13.2 rpm
Grease 5800 rpm
--- Fitting Dimensions
Oil 6800 rpm
D<sub>1</sub> Max. 115.21mm
a Max. 4.06mm
b Min. 3.1mm
r<sub>o</sub> Max. 0.6mm
