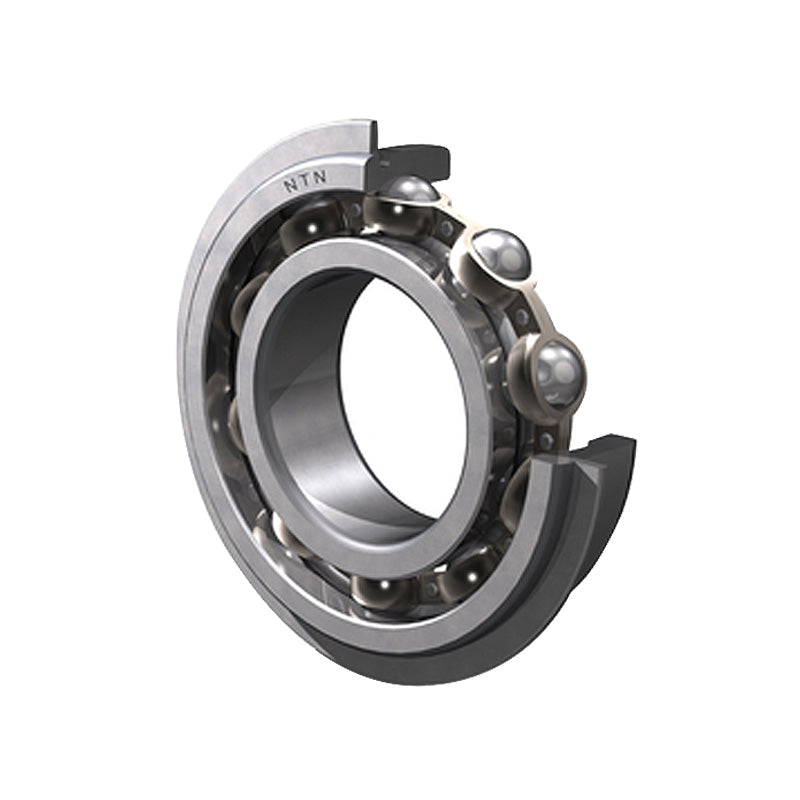

• NTN 6312NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 60x130x31mm
  • NTN
1 2

SKU: 6312NRC3-NTN

NTN 6312NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 60x130x31mm

NTN 6312NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 60x130x31mm
$216.91 ex VAT
$216.91 ex VAT
Sale Sold out

Equivalent to: 312KGC3 312SGC3 43312C3

In stock

Price Break
3+ $145.29
5+ $137.13
10+ $135.50
25+ $133.87
49+ $132.23
74+ $130.60
99+ $122.44
199+ $120.81
249+ $119.17
499+ $117.54
999+ $114.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
130mm
Width:
31mm
Seals / Shields:
None
Clearance:
C3
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 60mm
D 130mm
B 31mm
r<sub>s</sub> min 2.1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 90.5 kN
C<sub>or</sub> 52 kN
C<sub>u</sub> 4.1 kN
f<sub>0</sub> 13.2 kN
Grease 5400 rpm
Oil 6300 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 125.22mm
a Max. 4.06mm
b Min. 3.1mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 139.7mm
f Max. 2.82mm
--- Fitting Dimensions
d<sub>a</sub> Min. 71mm
d<sub>a</sub> Max. 80.5mm
D<sub>a</sub> Max. 119mm
D<sub>X</sub> (approx) 141.5mm
C<sub>Y</sub> Max. 6.5mm
C<sub>Z</sub> Min. 2.9mm
r<sub>as</sub> Max. 2mm
r<sub>Nas</sub> Max. 0.5mm
Weight 1.73 kg
